Service kit control arm / Value Line for BMW 3 Series E46 330d (2004)

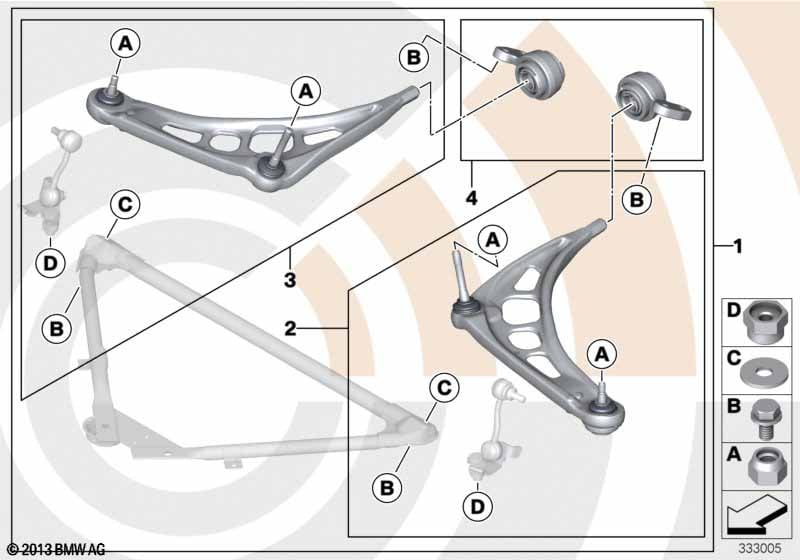

This Service kit control arm / Value Line technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Please observe Repair Manual. | ||||||||||
| 01 | Wishbone set | VALUE PARTS | 1 | 02/2001 | 31122158880 | ENDED | Shop at ECS Tuning | |||
| Part is not longer available | ||||||||||
| For vehicles with M Sports package II Please observe Repair Manual. |
S338A=Yes |
|||||||||
| 01 | Wishbone set | VALUE PARTS | 1 | 02/2001 | 31122158894 | Shop at ECS Tuning | ||||
| Part is not longer available | ||||||||||
| Please observe Repair Manual. | ||||||||||
| 02 | Repair kit, wishbone, left | VALUE PARTS | 1 | 02/2001 | 31122343353 | Shop at ECS Tuning | ||||
| Both wishbones must be replaced on vehicles built before 07/1999! |
||||||||||
| For vehicles with M Sports package II Please observe Repair Manual. |
S338A=Yes |
|||||||||
| 02 | Repair kit, wishbone, left | VALUE PARTS | 1 | 02/2001 | 31122341297 | Shop at ECS Tuning | ||||
| Both wishbones must be replaced on vehicles built before 07/1999! |
||||||||||
| Please observe Repair Manual. | ||||||||||
| 03 | Repair kit, wishbone, right | VALUE PARTS | 1 | 02/2001 | 31122343352 | Shop at ECS Tuning | ||||
| Both wishbones must be replaced on vehicles built before 07/1999! |
||||||||||
| For vehicles with M Sports package II Please observe Repair Manual. |
S338A=Yes |
|||||||||
| 03 | Repair kit, wishbone, right | VALUE PARTS | 1 | 02/2001 | 31122341828 | Shop at ECS Tuning | ||||
| Both wishbones must be replaced on vehicles built before 07/1999! |
||||||||||
| Please observe Repair Manual. | ||||||||||
| 04 | Set of brackets with rubber mounting | D=66MM | 1 | 31126783376 | $162.36 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
