Rep. kit, drivebelt assembly,Value Line for BMW 5 Series F07 GT 530d

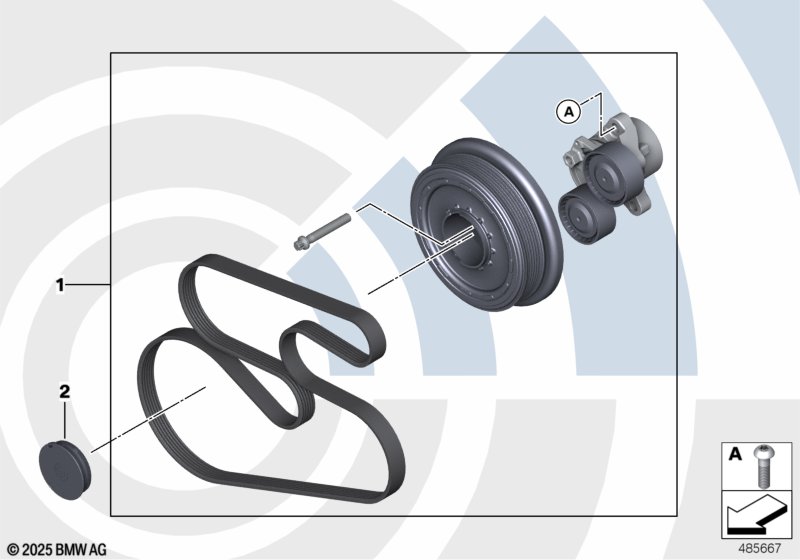

This Rep. kit, drivebelt assembly,Value Line technical drawing provides a detailed breakdown of the assembly for the 5 Series F07 GT 530d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VALUE REPAIR PARTS! Everything in one click! Saves time, logistical costs and handling costs. |
||||||||||
| 01 | Repair kit for belt drive, complete | VALUE PARTS | 1 | 03/2018 | 11282457053 | ENDED | Shop at ECS Tuning | |||
| Please observe Repair Manual. | ||||||||||
| 01 | Repair kit for belt drive, complete | VALUE PARTS | 1 | 11282469671 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 02 | Covering cap | 1 | 11238518985 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
