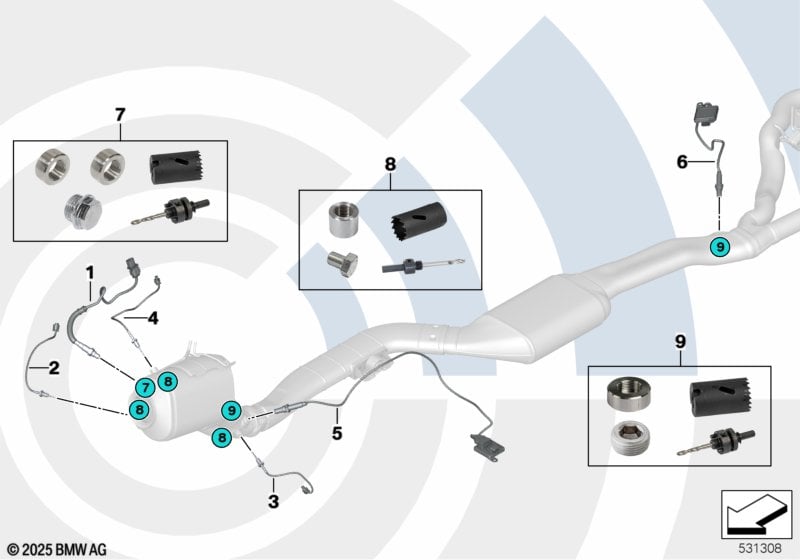

Rep. kit welded case exhaust gas sensors for BMW 3 Series E92 325d (2010)
This Rep. kit welded case exhaust gas sensors technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oxygen sensor | L=380MM | 1 | 13627791600 | Shop at ECS Tuning | |||||
| For vehicles with EU3 exhaust emissions standard |
S169A=No |
|||||||||
| 02 | Temperature sensor | L=240 | 1 | 13627809153 | Shop at ECS Tuning | |||||
| 04 | Temperature sensor | L=110 | 1 | 13627809157 | Shop at ECS Tuning | |||||
| VALUE REPAIR PARTS! Product significantly reduces repair costs. Primary part no longer requires replacement. |
||||||||||
| 07 | Welded case oxygen sensor | VALUE PARTS | 1 | 18305A93365 | Shop at ECS Tuning | |||||
| Observe repair manual. Do not use in cast metal! Use only for 90° installation position! Restore positioning exactly! |
||||||||||
| 08 | Welded case temperature sensor | VALUE PARTS | 1 | 18305A93319 | Shop at ECS Tuning | |||||
| Observe repair manual. Do not use in cast metal! Use only for 90° installation position! Restore positioning exactly! |
||||||||||
