Service kit brake pads for BMW 5 Series G30 520dX (2020)

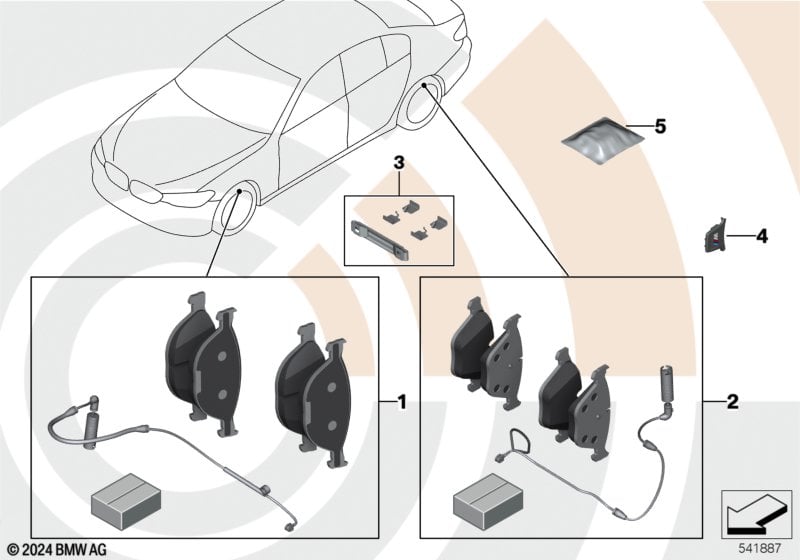

This Service kit brake pads technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VALUE REPAIR PARTS! Saves time, logistical costs and handling costs. |
||||||||||
| 01 | Set of brake pads with wear sensors | VALUE PARTS | 1 | 34108877031 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 02 | Set of brake pads with wear sensors | VALUE PARTS | 1 | 34208877002 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| For vehicles with M Sport brakes and M SPORT BRAKE, RED HIGH-GLOSS |
S2NHA=Yes S3M2A=Yes |
|||||||||
| 04 | BMW Design clip | 1 | 34206881294 | Shop at ECS Tuning | ||||||
| For vehicles with M Sport brakes and M SPORT BRAKE, RED HIGH-GLOSS |
S2NHA=Yes S3M2A=No |
|||||||||
| 04 | BMW Design clip | 1 | 34206881294 | Shop at ECS Tuning | ||||||
| For vehicles with M Sport brakes and M SPORT BRAKE, RED HIGH-GLOSS |
S2NHA=No S3M2A=Yes |
|||||||||
| 04 | BMW Design clip | 1 | 34206881294 | Shop at ECS Tuning | ||||||
| 05 | Brake pad paste | 3G | 1 | 83192158851 | Shop at ECS Tuning | |||||
