Repair kit for radius rods and wishbones for BMW 5 Series G30 520d (2020)

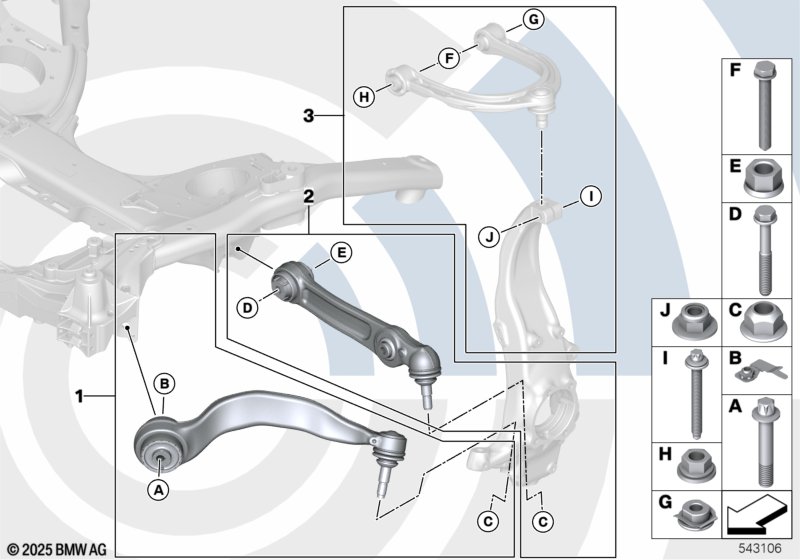

This Repair kit for radius rods and wishbones technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VALUE REPAIR PARTS! Everything in one click! Saves time, logistical costs and handling costs. Improves the repair quality. |
||||||||||
| 01 | Repair set for radius rod, left | VALUE PARTS | 1 | 31108879341 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 01 | Repair set for radius rod, right | VALUE PARTS | 1 | 31108879342 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 02 | Repair kit, wishbone, left | VALUE PARTS | 1 | 31108879174 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 02 | Repair kit, wishbone, right | VALUE PARTS | 1 | 31108879203 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
| 03 | Installation kit, control arm, upper | VALUE PARTS | 1 | 31108878965 | Shop at ECS Tuning | |||||
| Please observe Repair Manual. | ||||||||||
