Individual door inset front for BMW 3 Series E46 318i (2001)

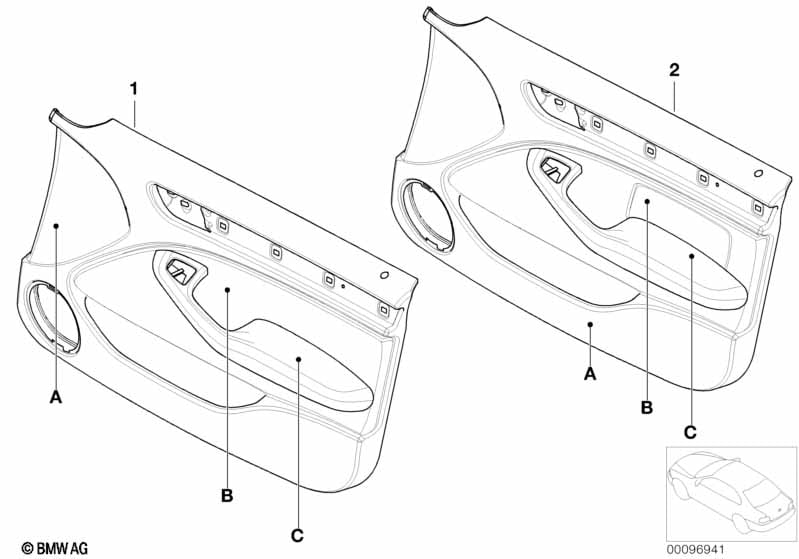

This Individual door inset front technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Film color carrier/door panel - (B) Part number leather - (C) Part number leather --------------------------- Possible film colors carrier/door panel - black - grey - light beige 2 --------------------------- Version: only in leather Walknappa or Pearlnappa --------------------------- |
|||||||||
| For vehicles with Deleted, side airbag |
S259A=Yes |
|||||||||
| 01 | Door trim panel, front left | Q9 | 1 | 51418009077 | $811.89 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right | Q9 | 1 | 51418009078 | $892.80 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Door trim panel, front left / airbag | Q9 | 1 | 51418009073 | $984.87 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Door trim panel, front right / airbag | Q9 | 1 | 51418009074 | $984.87 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
