Individual door inset front, airbag for BMW 3 Series E46 318Ci (2004)

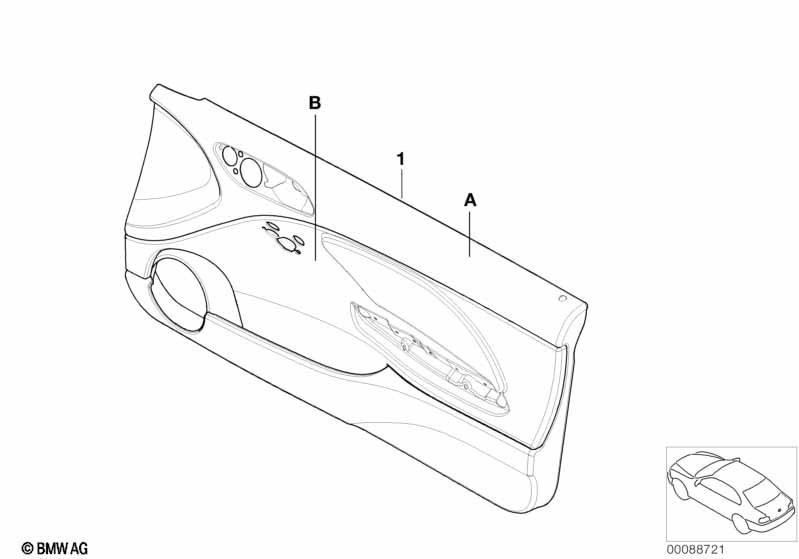

This Individual door inset front, airbag technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Film colour carrier/door panel - (B) Part number leather --------------------------- Door trim, imitation leather Insert, leather --------------------------- --------------------------- |
|||||||||
| 01 | Door trim panel, front left / airbag | INDIVIDUAL | 1 | 51418011541 | $1598.11 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Door trim panel, front right / airbag | INDIVIDUAL | 1 | 51418011542 | $1177.38 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318Ci Individual door inset front, airbag?
- This technical diagram illustrates the Individual door inset front, airbag within the Individual equipment group for the 3 Series E46 318Ci produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Door trim panel, front left / airbag (Part #51418011541).
- Which models use the hardware listed in this Individual door inset front, airbag?
- The hardware and components featured in the Individual door inset front, airbag are specific to the 3 Series E46 318Ci produced during 2004. These technical specifications ensure that parts like the Door trim panel, front left / airbag (51418011541) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual door inset front, airbag assembly?
- Each item in the Individual door inset front, airbag corresponds to the numbered list below the illustration. For the 3 Series E46 318Ci, you can identify the Door trim panel, front left / airbag by locating its position on the schematic, which then links to the official BMW part number 51418011541 for the Individual equipment section.
