I-Serie ZD Highline Variante 1, KA61 for BMW 7 Series E38 728i (2001)

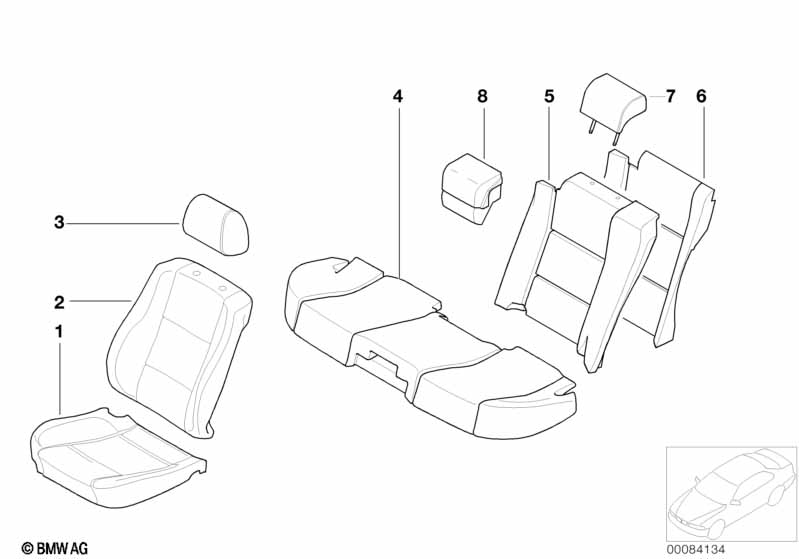

This I-Serie ZD Highline Variante 1, KA61 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Variant 1 Leather, Montana black with chateau piping - Seats, head restraints Leather, black bicolor Walknappa/chateau - Bicolor II wheel rim (see ITU: 32_1229 Pos 3) Fine anthracite Birch woodgrain (see Main Group 91 40) Remaining interior equipped as with: N6SW (728i - 740i/iL), N8SW (750i - 750i/iL) |
|||||||||
| For vehicles with basic seat (standard seat) |
=Yes |
|||||||||
| 01 | Leatehr seat cover with colour strip | SW/CHATEAU | 2 | 03/2000 | 52108016494 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 01 | Leatehr seat cover with colour strip | SW/CHATEAU | 2 | 03/2000 | 52108016494 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 01 | Leatehr seat cover with colour strip | SW/CHATEAU | 2 | 03/2000 | 52108016515 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) |
=Yes |
|||||||||
| 02 | Leatehr backrest cover with colour strip | SW/CHATEAU | 2 | 03/2000 | 52108016495 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 02 | Leatehr backrest cover with colour strip | SW/CHATEAU | 2 | 52108016511 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 02 | Leatehr backrest cover with colour strip | SW/CHATEAU | 2 | 03/2000 | 52108016516 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) |
=Yes |
|||||||||
| 03 | Leather head rest with color strip | SW/CHATEAU | 2 | 03/2000 | 52108016493 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 03 | Leather head rest with color strip | SW/CHATEAU | 2 | 03/2000 | 52108016510 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 03 | Leather head rest with color strip | SW/CHATEAU | 2 | 03/2000 | 52108016514 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Rear compartment equipment or Comfort seat with storage tray |
P446A=Yes P462A=Yes |
|||||||||
| 03 | Multi-functional headrest | SW/CHATEAU | 2 | 03/2000 | 52108016512 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 04 | Leatehr seat cover with colour strip | SW/CHATEAU | 1 | 03/2000 | 52208016518 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) or Comfort seat |
=Yes =Yes |
|||||||||
| 04 | Leatehr seat cover with colour strip | SW/CHATEAU | 1 | 03/2000 | 52208016499 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 05 | Cover backrest leather left | SW/CHATEAU | 1 | 03/2000 | 52208016519 | ENDED, NoS | Shop at ECS Tuning | |||
| 05 | Cover backrest leather right | SW/CHATEAU | 1 | 03/2000 | 52208016520 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) or Comfort seat |
=Yes =Yes |
|||||||||
| 05 | Cover, backrest, rear left leather | SW/CHATEAU | 1 | 03/2000 | 52208016497 | ENDED, NoS | Shop at ECS Tuning | |||
| 05 | Cover, backrest, rear right leather | SW/CHATEAU | 1 | 03/2000 | 52208016498 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory and Electr.rear seat adjustment |
S457A=Yes S460A=Yes |
|||||||||
| 06 | Cover backrest leather left | SW/CHATEAU | 1 | 03/2000 | 52208016523 | ENDED, NoS | Shop at ECS Tuning | |||
| 06 | Cover backrest leather right | SW/CHATEAU | 1 | 03/2000 | 52208016524 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Electr.rear seat adjustment and basic seat (standard seat) or Comfort seat |
S460A=Yes =Yes =Yes |
|||||||||
| 06 | Cover backrest leather left | SW/CHATEAU | 1 | 03/2000 | 52208016503 | ENDED, NoS | Shop at ECS Tuning | |||
| 06 | Cover backrest leather right | SW/CHATEAU | 1 | 03/2000 | 52208016504 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) |
=Yes |
|||||||||
| 07 | Leather head rest with color strip | SW/CHATEAU | 2 | 03/2000 | 52208016496 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 07 | Leather head rest with color strip | SW/CHATEAU | 2 | 03/2000 | 52208016496 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 07 | Leather head rest with color strip | SW/CHATEAU | 2 | 03/2000 | 52208016517 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 08 | Leather head rest with color strip | SW/CHATEAU | 1 | 03/2000 | 52208016521 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) or Comfort seat |
=Yes =Yes |
|||||||||
| 08 | Leather head rest with color strip | SW/CHATEAU | 1 | 03/2000 | 52208016507 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
