I-Serie ZD Highline Variante 2, KA61 for BMW 7 Series E38 735iL (2001)

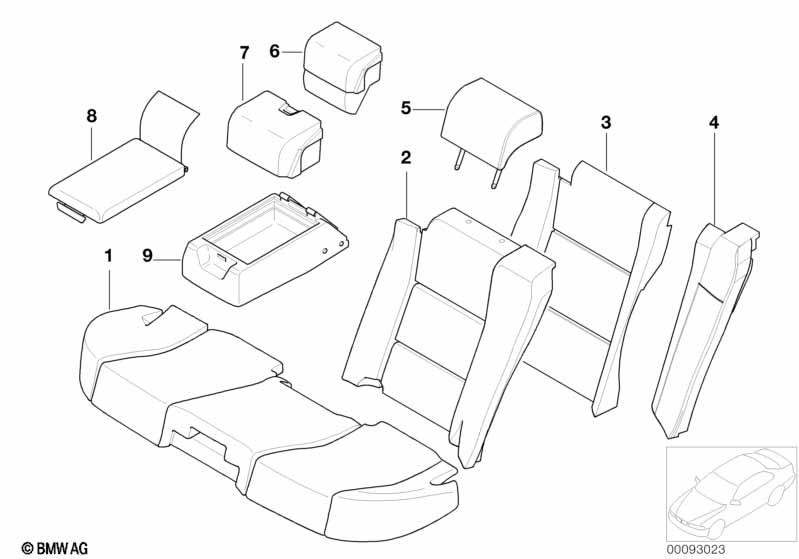

This I-Serie ZD Highline Variante 2, KA61 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Version 2 (728i - 740i/iL) Leather champagne with marineblau piping - Seats, head restraints Leather, Nappa Walkchampagne - Seatback 6 - Door panel inserts / armrest Leather, Soft Nappa marineblau - Steering wheel rim (see ITU: 91_0079 Pos 1) headliner, upper A-,C-pillar trim and B-pillar trim in pearlbeige (see Main Group 51..) Remaining interior equipped as with: N6DL # (750i - 750i/iL) Leather champagne with marineblau piping - Seats, head restraints Leather, Walk champagne Nappa - Seatback - Door panel inserts / armrest Leather, Soft Nappa marineblau - I-panel, lower - Support-door panel + Mounting parts - Center console, center armrest - Lower B-pillar trim - Steering wheel rim (see ITU: 91_0079 Pos 1) Headliner, upper A-,C-pillar trim and upper B-pillar trim in pearlbeige (see Main group 51..) Remaining interior equipped as with: N8DL |
|||||||||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 01 | Leatehr seat cover with colour strip | CHAMPAGNER/DL | 1 | 03/2000 | 52208016555 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) or Comfort seat |
=Yes =Yes |
|||||||||
| 01 | Leatehr seat cover with colour strip | CHAMPAGNER/DL | 1 | 03/2000 | 52208016532 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 02 | Cover backrest leather right | CHAMPAGNER/DL | 1 | 03/2000 | 52208016556 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover backrest leather left | CHAMPAGNER/DL | 1 | 03/2000 | 52208016557 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) or Comfort seat |
=Yes =Yes |
|||||||||
| 02 | Cover, backrest, rear left leather | CHAMPAGNER/DL | 1 | 03/2000 | 52208016533 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cover, backrest, rear right leather | CHAMPAGNER/DL | 1 | 03/2000 | 52208016534 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory and Electr.rear seat adjustment |
S457A=Yes S460A=Yes |
|||||||||
| 03 | Cover backrest leather left | CHAMPAGNER/DL | 1 | 03/2000 | 52208016559 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Cover backrest leather right | CHAMPAGNER/DL | 1 | 03/2000 | 52208016560 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Electr.rear seat adjustment and basic seat (standard seat) or Comfort seat |
S460A=Yes =Yes =Yes |
|||||||||
| 03 | Cover backrest leather left | CHAMPAGNER/DL | 1 | 03/2000 | 52208016541 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Cover backrest leather right | CHAMPAGNER/DL | 1 | 03/2000 | 52208016542 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Electr.rear seat adjustment |
S460A=Yes |
|||||||||
| 04 | Lateral trim panel left | CHAMPAGNER | 1 | 03/2000 | 52208016543 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Lateral trim panel right | CHAMPAGNER | 1 | 03/2000 | 52208016544 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Comfort seat with memory |
S456A=Yes |
|||||||||
| 05 | Leather head rest with color strip | CHAMPAGNER/DL | 2 | 03/2000 | 52208016531 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) |
=Yes |
|||||||||
| 05 | Leather head rest with color strip | CHAMPAGNER/DL | 2 | 03/2000 | 52208016531 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Contour seat, front, electr. with memory |
S457A=Yes |
|||||||||
| 05 | Leather head rest with color strip | CHAMPAGNER/DL | 2 | 03/2000 | 52208016554 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Leather head rest with color strip | CHAMPAGNER/DL | 1 | 03/2000 | 52208016563 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with basic seat (standard seat) or Comfort seat |
=Yes =Yes |
|||||||||
| 06 | Leather head rest with color strip | CHAMPAGNER/DL | 1 | 03/2000 | 52208016539 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 07 | Storing partition rear | CHAMPAGNER | 1 | 03/2000 | 52208016538 | ENDED, NoS | Shop at ECS Tuning | |||
| 08 | Armrest upper leather | CHAMPAGNER | 1 | 03/2000 | 52208016536 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Ski bag |
S464A=Yes |
|||||||||
| 08 | Armrest upper leather | CHAMPAGNER | 1 | 03/2000 | 52208016545 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest |
=Yes |
|||||||||
| 08 | Armrest upper leather | CHAMPAGNER | 1 | 03/2000 | 52209070291 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 09 | Armrest lower leather | CHAMPAGNER | 1 | 03/2000 | 52208016537 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Ski bag |
S464A=Yes |
|||||||||
| 09 | Armrest lower leather | CHAMPAGNER | 1 | 03/2000 | 52208016546 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with multi-purpose armrest |
=Yes |
|||||||||
| 09 | Armrest lower leather | CHAMPAGNER | 1 | 03/2000 | 52209070292 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
