I-Serie ZD Highline Variante 2, KA61 for BMW 7 Series E38 728i (2001)

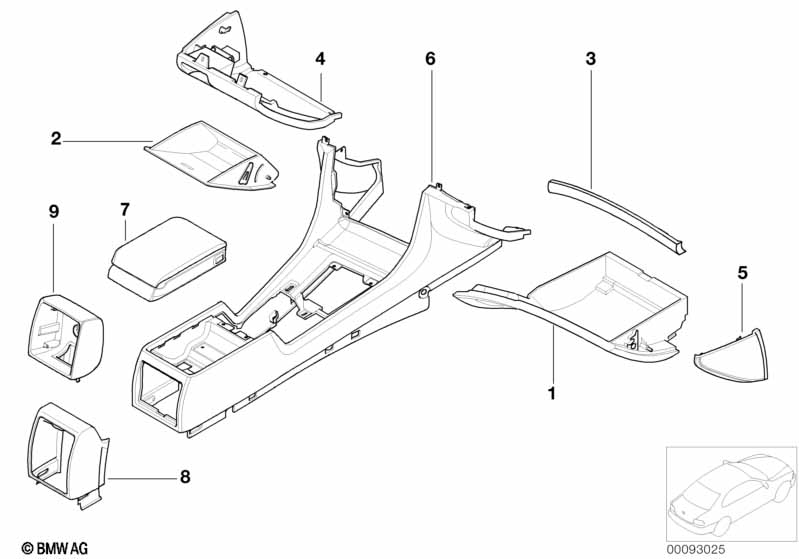

This I-Serie ZD Highline Variante 2, KA61 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Version 2 (728i - 740i/iL) Leather champagne with marineblau piping - Seats, head restraints Leather, Nappa Walkchampagne - Seatback 6 - Door panel inserts / armrest Leather, Soft Nappa marineblau - Steering wheel rim (see ITU: 91_0079 Pos 1) headliner, upper A-,C-pillar trim and B-pillar trim in pearlbeige (see Main Group 51..) Remaining interior equipped as with: N6DL # (750i - 750i/iL) Leather champagne with marineblau piping - Seats, head restraints Leather, Walk champagne Nappa - Seatback - Door panel inserts / armrest Leather, Soft Nappa marineblau - I-panel, lower - Support-door panel + Mounting parts - Center console, center armrest - Lower B-pillar trim - Steering wheel rim (see ITU: 91_0079 Pos 1) Headliner, upper A-,C-pillar trim and upper B-pillar trim in pearlbeige (see Main group 51..) Remaining interior equipped as with: N8DL |
|||||||||
| For vehicles with Air conditioning, rear |
S533A=Yes |
|||||||||
| 08 | Rear center console | MARINEBLAU | 1 | 03/2000 | 51168018104 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Air conditioning, rear and Rear display screen |
S533A=Yes S603A=Yes |
|||||||||
| 08 | Rear center console | MARINEBLAU | 1 | 03/2000 | 51168018105 | ENDED, NoS | Shop at ECS Tuning | |||
| 09 | Mount, monitor in the rear | MARINEBLAU | 1 | 03/2000 | 65508020661 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
