I-Serie ZD Highline Variante 3, KA61 for BMW 7 Series E38 725tds (2000)

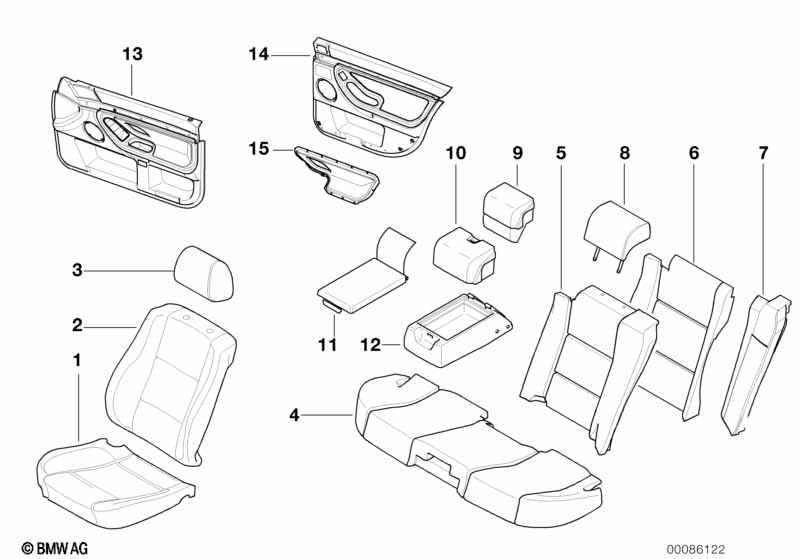

This I-Serie ZD Highline Variante 3, KA61 technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Version 3 Leather pearl-beige with dark chestnut piping - Seats, head restraints pearl-beige leather - Center cover panel (door mirror) Leather bicolor black/pearlbeige - Steering wheel rim Bicolor II (see ITU: 91_0079 Pos 3) Remaining interior equipped as with: N6SW (728i - 740i/iL), N8SW (750i - 750i/iL) |
|||||||||
| For vehicles with multi-purpose armrest |
=Yes |
|||||||||
| 11 | Armrest upper leather | N6OY,O7OY PEARL | 1 | 52207009753 | ENDED, +core | Shop at ECS Tuning | ||||
| 12 | Armrest lower leather | N6OY,O7OY PEARL | 1 | 52207009755 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
