Indi. cover, base seat, Alcantara/Online for BMW 3 Series E46 330Ci

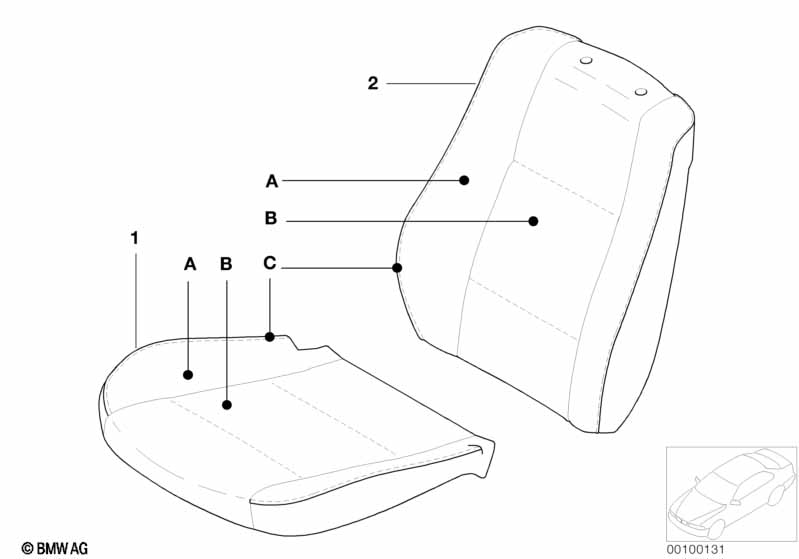

This Indi. cover, base seat, Alcantara/Online technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part Number Alcantara unicolor - (B) Part Number Alcantara Online - (C) Color code Thread = Suitable --------------------------- For vehicles with Seat heating |
=Yes |
||||||||
| 01 | Cover, seat, front Alcantara Online | 2 | 52108014387 | $730.98 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 02 | Backrest cover, front Alcantara Online | 2 | 52108014388 | $730.98 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
