Indiv. headrest, sports seat, leather for BMW 3 Series E46 325i (2004)

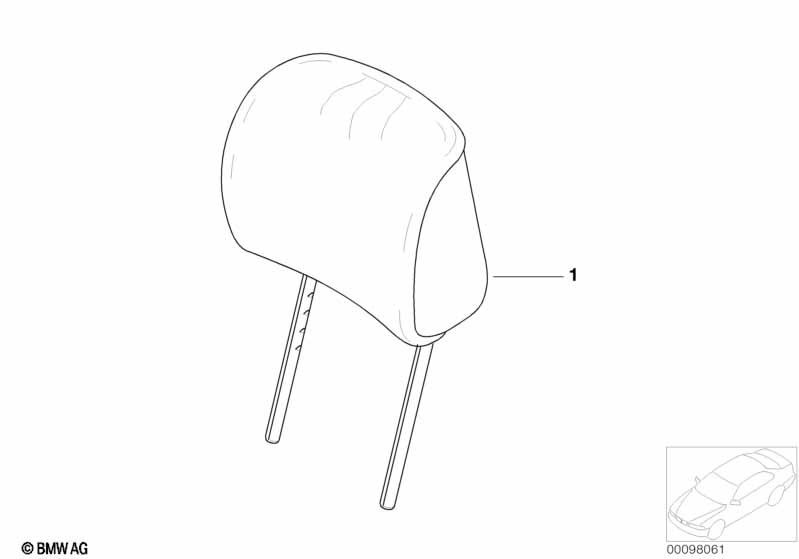

This Indiv. headrest, sports seat, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather --------------------------- Version: only available in fulled Napa leather or pearl Napa For vehicles with Sports seat |
S481A=Yes |
||||||||
| 01 | Headrest leather | Q9 | 2 | 52108021887 | $270.07 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
