Individual multifunct. armrest, leather for BMW 3 Series E46 330xd (2001)

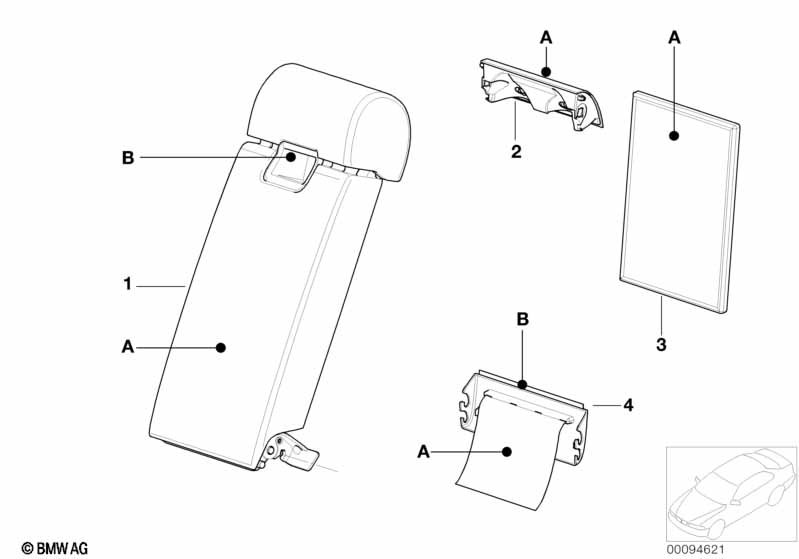

This Individual multifunct. armrest, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Finishers color --------------------------- Finishers available in - black - grey - light-beige - light-yellow --------------------------- Version: only in leather Walknappa or Pearlnappa --------------------------- |
|||||||||
| 01 | multi-purpose armrest | Q9 | 1 | 52208014253 | $689.13 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Cup holder | Q9 | 1 | 52208021890 | $143.96 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Upper cover | Q9 | 1 | 52208021889 | $176.33 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Cover | Q9 | 1 | 52208022046 | $176.33 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
