Individual leather gear shift knob for BMW 3 Series E46 330d (2004)

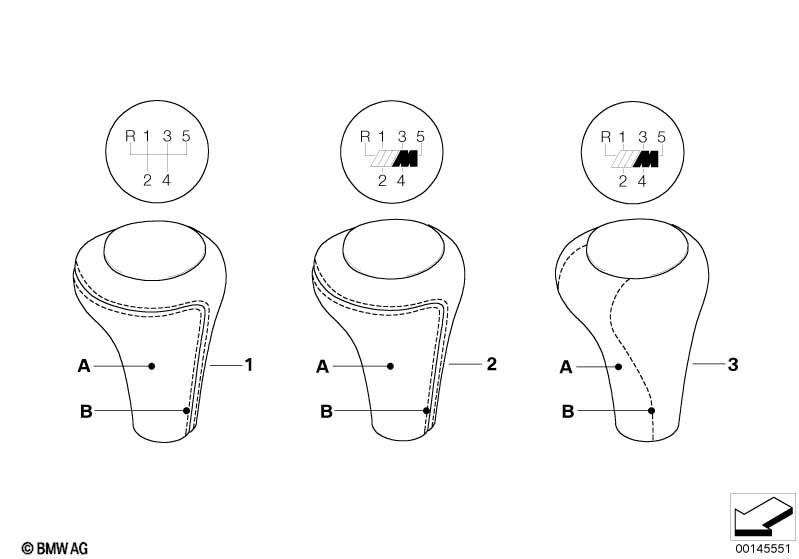

This Individual leather gear shift knob technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- |
|||||||||
| 01 | Gearshift knob, leather/5-speed | 1 | 25118012965 | $77.28 | ENDED, NoS | Shop at ECS Tuning | ||||
| 02 | Gearshift knob,leather/M plaque/5-speed | 1 | 25118019064 | $82.86 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with M Sports package II or Individual series "Clubsport" or Interior moldings Alu Silver Cube or Interior moldings Alu Black Cube |
S338A=Yes S768A=Yes S770A=Yes S772A=Yes |
|||||||||
| 03 | Gearshift knob,leather/M plaque/5-speed | SHORTSHIFT | 1 | 09/2002 | 25118024650 | $84.54 | ENDED, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Individual leather gear shift knob?
- This technical diagram illustrates the Individual leather gear shift knob within the Individual equipment group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Gearshift knob, leather/5-speed (Part #25118012965).
- Which models use the hardware listed in this Individual leather gear shift knob?
- The hardware and components featured in the Individual leather gear shift knob are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Gearshift knob, leather/5-speed (25118012965) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual leather gear shift knob assembly?
- Each item in the Individual leather gear shift knob corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Gearshift knob, leather/5-speed by locating its position on the schematic, which then links to the official BMW part number 25118012965 for the Individual equipment section.
