Individual shift lever cover SMG for BMW 3 Series E46 330d (2004)

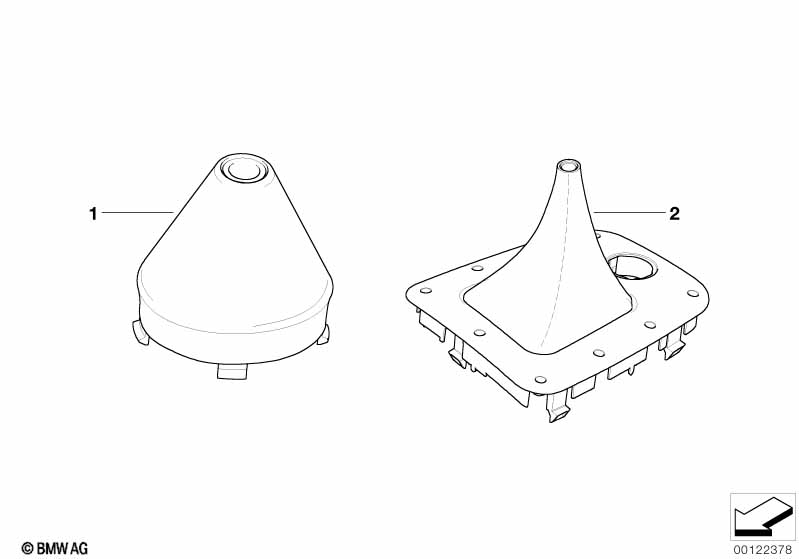

This Individual shift lever cover SMG technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Specify when ordering: part no., dealer no., chassis no., leather color --------------------------- |
|||||||||
| For vehicles with Sequential manual transmission (SMG) |
S206A=Yes |
|||||||||
| 02 | Leather gear lever cover | SMG | 1 | 09/2001 | 25128021606 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Individual shift lever cover SMG?
- This technical diagram illustrates the Individual shift lever cover SMG within the Individual equipment group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Leather gear lever cover (Part #25128021606).
- Which models use the hardware listed in this Individual shift lever cover SMG?
- The hardware and components featured in the Individual shift lever cover SMG are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Leather gear lever cover (25128021606) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual shift lever cover SMG assembly?
- Each item in the Individual shift lever cover SMG corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Leather gear lever cover by locating its position on the schematic, which then links to the official BMW part number 25128021606 for the Individual equipment section.
