Individual decor panel SA 255 for BMW 3 Series E46 318i (2001)

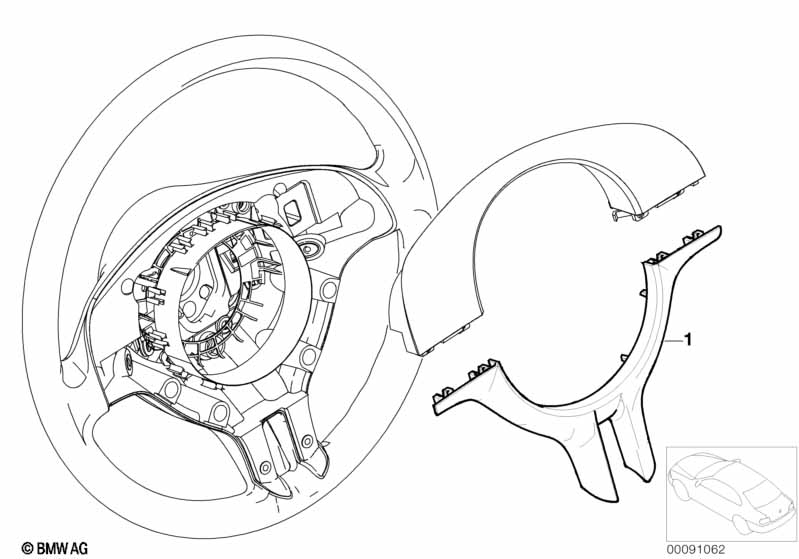

This Individual decor panel SA 255 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 --------------------------- Attention for retrofit! If no wood panelling is fitted in the vehicle, wood trim retrofit only in connection with steering wheel for wood trim --------------------------- --------------------------- --------------------------- englischrot = kastanie |
|||||||||
| 01 | Decor finisher, painted | CODE - UNI/MET. | 1 | 06/2000 | 32300151599 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Decor panel, primed | 1 | 06/2000 | 32308020155 | $35.71 | ENDED, NoS | Shop at ECS Tuning | |||
| Individual wood | ||||||||||
| 01 | Decor panel, real wood | OLIV | 1 | 06/2000 | 11/2001 | 32308020216 | $436.36 | ENDED, +core, NoS | Shop at ECS Tuning | |
| 01 | Decor panel, real wood | OLIV | 1 | 06/2000 | 11/2001 | 32308022511 | ENDED, NoS | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Decor panel, real wood | BIRKE ANTHRAZIT | 1 | 06/2000 | 11/2001 | 32308022441 | ENDED, NoS | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Decor panel, real wood | PAPPEL NATUR | 1 | 06/2000 | 11/2001 | 32308022502 | ENDED, NoS | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Decor panel, real wood | ARIZONA SUN | 1 | 06/2000 | 11/2001 | 32308022505 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Decor panel, real wood | ENGLISCHROT | 1 | 06/2000 | 11/2001 | 32308022508 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | screw for plastic | 4X14MM | 6 | 06/2000 | 11/2001 | 32306756573 | $0.70 | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
