Individual handbrake lever, leather for BMW 3 Series E46 318i (2003)

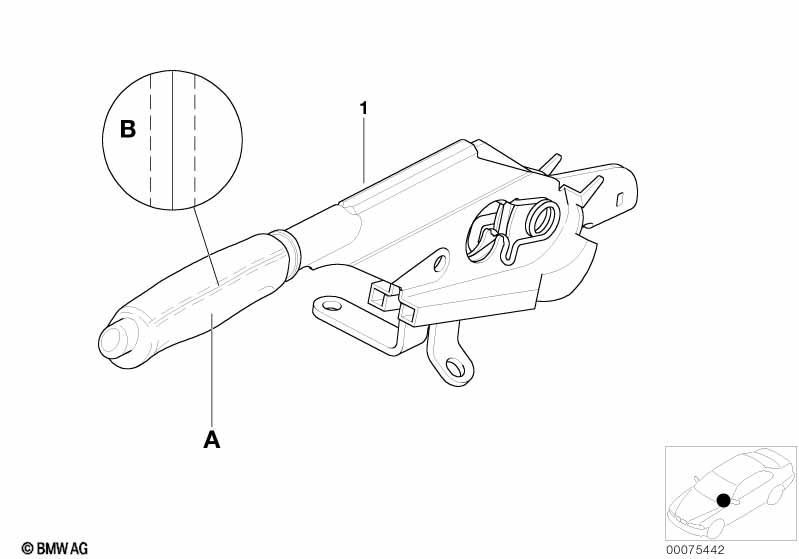

This Individual handbrake lever, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or SA 940 = option in general --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Comparable series part: 34 41 1 164 489 (LHD) 34 41 1 164 493 (RHD) --------------------------- --------------------------- Specify when ordering: part no., dealer no., chassis no., ( A ) leather colour, ( B ) colour of thread |
|||||||||
| 01 | Leather handbrake lever | 1 | 34418014122 | $123.86 | ENDED, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Individual handbrake lever, leather?
- This technical diagram illustrates the Individual handbrake lever, leather within the Individual equipment group for the 3 Series E46 318i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Leather handbrake lever (Part #34418014122).
- Which models use the hardware listed in this Individual handbrake lever, leather?
- The hardware and components featured in the Individual handbrake lever, leather are specific to the 3 Series E46 318i produced during 2003. These technical specifications ensure that parts like the Leather handbrake lever (34418014122) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual handbrake lever, leather assembly?
- Each item in the Individual handbrake lever, leather corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Leather handbrake lever by locating its position on the schematic, which then links to the official BMW part number 34418014122 for the Individual equipment section.
