Individual handbrake lever f ring for BMW 3 Series E46 323i (2000)

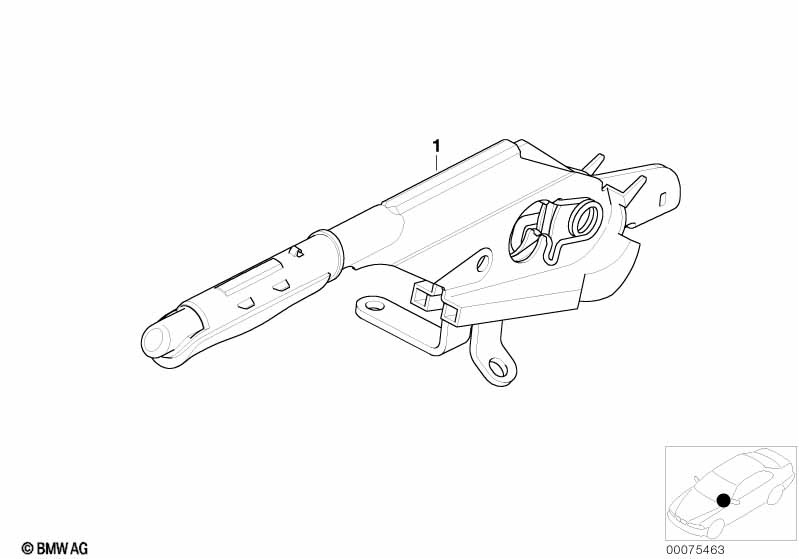

This Individual handbrake lever f ring technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Comparable series part: 34 41 7 902 387 (LHD) 34 41 7 902 388 (RHD) --------------------------- --------------------------- Specify when ordering: part no., dealer no., chassis no., leather color |
|||||||||
| 01 | Handbrake lever without ring | 1 | 34418014367 | $84.82 | ENDED, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 323i Individual handbrake lever f ring?
- This technical diagram illustrates the Individual handbrake lever f ring within the Individual equipment group for the 3 Series E46 323i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Handbrake lever without ring (Part #34418014367).
- Which models use the hardware listed in this Individual handbrake lever f ring?
- The hardware and components featured in the Individual handbrake lever f ring are specific to the 3 Series E46 323i produced during 2000. These technical specifications ensure that parts like the Handbrake lever without ring (34418014367) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual handbrake lever f ring assembly?
- Each item in the Individual handbrake lever f ring corresponds to the numbered list below the illustration. For the 3 Series E46 323i, you can identify the Handbrake lever without ring by locating its position on the schematic, which then links to the official BMW part number 34418014367 for the Individual equipment section.
