Individual wood ashtray/non-smoker box for BMW 3 Series E36 M3 (1999)

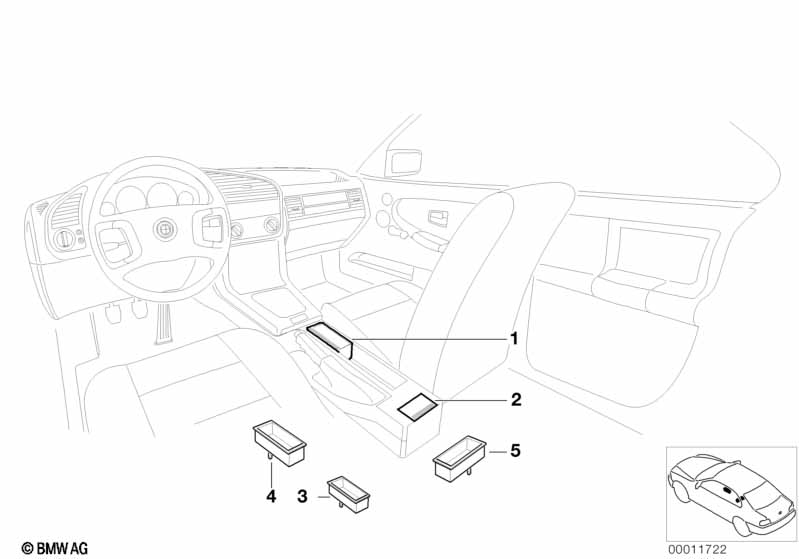

This Individual wood ashtray/non-smoker box technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Individual vehicles with SA 940 --------------------------- Standard wood see Image Text Unit Centre console --------------------------- Option 438 = Burr walnut 91 Option 738 = Yew Club Option 739 = Birch anthracite Option 773 = Burr walnut 93 Option 773 = Burr walnut E39 for E36/5 Option 490 = Special individual option |
|||||||||
| Individual wood | ||||||||||
| 01 | Ashtray front | PLATANE | 1 | 51162261189 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Ashtray front | BEIGE 0110 | 1 | 51162261190 | $211.21 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Ashtray front | GRAU 0120 | 1 | 51162261191 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Ashtray front | GRAPHIT 0130 | 1 | 51162261192 | $206.46 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Ashtray front | PAPPEL NATUR | 1 | 51162261214 | ENDED | Shop at ECS Tuning | ||||
| 01 | Ashtray front | EIBE CLUB | 1 | 51162261225 | $170.75 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Ashtray front | CLASSIC NUßBAUM | 1 | 51162261239 | ENDED, +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RETROFITTING ONLY APPLIES TO WOODEN EQUIPMENT/SA438 |
||||||||||
| 01 | Ashtray front | NUSSBAUM-WUR.91 | 1 | 82259402859 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Wooden trim SA 773 Standard wood |
=Yes |
|||||||||
| 01 | Ashtray front | NUSSBAUM/CHROM | 1 | 09/1996 | 51162491193 | $247.75 | Shop at ECS Tuning | |||
| For vehicles with Chrome-Line/SA345 Individual wood |
=Yes |
|||||||||
| 01 | Chromium-plated birchwood front ashtray | ANTHRAZIT 0690 | 1 | 51162423548 | $197.53 | ENDED | Shop at ECS Tuning | |||
| 01 | Chromium-plated front ashtray | PAPPEL NATUR | 1 | 51162423623 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Chromium-plated front ashtray | PLATANE | 1 | 51162423683 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Chromium-plated birchwood front ashtray | ROT 0630 | 1 | 51162423697 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Chromium-plated birchwood front ashtray | GELB 0610 | 1 | 51162423778 | +core | Shop at ECS Tuning | ||||
| 01 | Chromium-plated birchwood front ashtray | BLAU 0650 | 1 | 51162424265 | ENDED | Shop at ECS Tuning | ||||
| 01 | Ashtray front | EIBE CLUB/CHROM | 1 | 51162491197 | $219.85 | ENDED | Shop at ECS Tuning | |||
| 01 | Chromium-plated front ashtray | BRUYERE | 1 | 51162493305 | ENDED, +core | Shop at ECS Tuning | ||||
| Individual wood | ||||||||||
| 02 | Ashtray rear | PLATANE | 1 | 51162261193 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Ashtray rear | BEIGE 0110 | 1 | 51162261194 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 02 | Ashtray rear | GRAU 0120 | 1 | 51162261195 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 02 | Ashtray rear | GRAPHIT 0130 | 1 | 51162261196 | $211.21 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Ashtray rear | PAPPEL NATUR | 1 | 51162261215 | +core | Shop at ECS Tuning | ||||
| 02 | Ashtray rear | EIBE CLUB | 1 | 51162261226 | $197.53 | ENDED | Shop at ECS Tuning | |||
| 02 | Ashtray rear | CLASSIC NUßBAUM | 1 | 51162261240 | ENDED, +core | Shop at ECS Tuning | ||||
| ONLY APPLIES TO RETROFITTING ONLY APPLIES TO WOODEN EQUIPMENT/SA438 |
||||||||||
| 02 | Ashtray rear | NUSSBAUM-WUR.91 | 1 | 82259402860 | $53.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Wooden trim SA 773 Standard wood |
=Yes |
|||||||||
| 02 | Ashtray rear | NUSSBAUM/CHROM | 1 | 09/1996 | 51162491194 | $250.48 | Shop at ECS Tuning | |||
| For vehicles with Chrome-Line/SA345 Individual wood |
=Yes |
|||||||||
| 02 | Chromium-plated birchwood rear ashtray | ANTHRAZIT 0690 | 1 | 51162423549 | $224.39 | Shop at ECS Tuning | ||||
| 02 | Chromium-plated rear ashtray | PAPPEL NATUR | 1 | 51162423624 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Chromium-plated rear ashtray | PLATANE | 1 | 51162423684 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Chromium-plated birchwood rear ashtray | ROT 0630 | 1 | 51162423698 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Chromium-plated birchwood rear ashtray | GELB 0610 | 1 | 51162423779 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Chromium-plated birchwood rear ashtray | BLAU 0650 | 1 | 51162424266 | ENDED | Shop at ECS Tuning | ||||
| 02 | Chromium-plated rear ashtray | BRUYERE | 1 | 51162493306 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with non-smoker package |
=Yes |
|||||||||
| 03 | Cup | 1 | 51162494166 | $10.03 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with non-smoker package and Frame for box, front Individual wood |
=Yes =Yes |
|||||||||
| 04 | Wooden frame, birchwood | ANTHRAZIT 0690 | 1 | 51162426081 | $86.93 | ENDED | Shop at ECS Tuning | |||
| 04 | Wooden frame | PAPPEL NATUR | 1 | 51162426083 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden frame | PLATANE | 1 | 51162426085 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden frame, birchwood | ROT 0630 | 1 | 51162426087 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden frame, birchwood | GELB 0610 | 1 | 51162426089 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden frame, birchwood | BLAU 0650 | 1 | 51162426091 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden frame | EIBE CLUB | 1 | 51162494190 | $91.79 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Wooden frame | BRUYERE | 1 | 51162495424 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Wooden trim SA 773 and non-smoker package and Frame for box, front Standard wood |
=Yes =Yes =Yes |
|||||||||
| 04 | Cup | 1 | 51162494166 | $10.03 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with non-smoker package and Frame for box, rear Individual wood |
=Yes =Yes |
|||||||||
| 05 | Wooden frame, birchwood | ANTHRAZIT 0690 | 1 | 51162426082 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Wooden frame | PAPPEL NATUR | 1 | 51162426084 | $84.26 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Wooden frame | PLATANE | 1 | 51162426086 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Wooden frame, birchwood | ROT 0630 | 1 | 51162426088 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Wooden frame, birchwood | GELB 0610 | 1 | 51162426090 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Wooden frame, birchwood | BLAU 0650 | 1 | 51162426092 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Wooden frame | EIBE CLUB | 1 | 51162494168 | $84.26 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Wooden frame | BRUYERE | 1 | 51162495425 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Wooden trim SA 773 and non-smoker package and Frame for box, rear Standard wood |
=Yes =Yes =Yes |
|||||||||
| 05 | Cup | 1 | 51162494166 | $10.03 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
