Individual center armrest for BMW 5 Series E39 528i (2000)

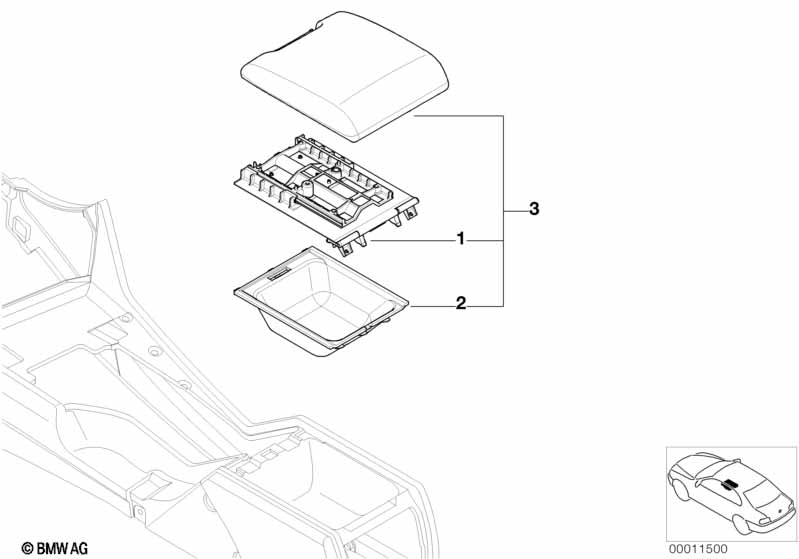

This Individual center armrest technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Individual armrest, complete version with sliding unit + insert only --------------------------- |
|||||||||
| 01 | Centre arm rest sliding unit | 1 | 51168196965 | $136.05 | Shop at ECS Tuning | |||||
| 02 | Center armrest tray | 1 | 51168196967 | $25.23 | Shop at ECS Tuning | |||||
| Leather Walknappa | ||||||||||
| 03 | Center arm rest | LOTOSWEIß | 1 | 51162423855 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | SILBERGRAU HELL | 1 | 51162423857 | $454.87 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | MEXICOGRÜN | 1 | 51162425289 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | MOKKA | 1 | 51162425293 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | CHAMPAGNER | 1 | 51162425680 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | GIALLO | 1 | 51162425683 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | AUBERGINE | 1 | 51162425812 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | IMOLAROT 2 | 1 | 51168019061 | $512.24 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| leather soft | ||||||||||
| 03 | Center arm rest | ENGLISCHGRÜN | 1 | 51162425221 | $472.07 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | LAVENDELGRAU | 1 | 51162425892 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | SCHWARZ 93 | 1 | 51162427367 | $454.87 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | GRAU | 1 | 51162428353 | $454.87 | ENDED, NoS | Shop at ECS Tuning | |||
| leather Connolly | ||||||||||
| 03 | Center arm rest, leather Connolly | HELLBEIGE | 1 | 51162427450 | $518.94 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| leather Montana | ||||||||||
| 03 | Center arm rest | ENGLISCHGRÜN | 1 | 51162421298 | $518.94 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | AUBERGINE | 1 | 51162426066 | $474.30 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | KLASSISCHROT | 1 | 51162426104 | $518.94 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | LAVENDELGRAU | 1 | 51162426212 | $474.30 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | SATTELBRAUN | 1 | 51162426216 | $474.30 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | HELLGRAU | 1 | 51162428077 | $454.87 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | TANINROT | 1 | 51162428096 | $518.94 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| leather Nappa | ||||||||||
| 03 | Center arm rest | MUGELLOROT | 1 | 51162426070 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | MAULBEERE | 1 | 51162426096 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | PETROL | 1 | 51162426100 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | LEMON | 1 | 51162426181 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | GAUCHO | 1 | 51162426209 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | CHATEAU | 1 | 51162426538 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | MINT | 1 | 51162427346 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | BARBADOSGRÜN | 1 | 51162427363 | $472.07 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | CLEAR GREEN | 1 | 51162427446 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | SANTORINBLAU | 1 | 51162427934 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | CASSIS | 1 | 51162428081 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | KLASSISCHROT | 1 | 51162428085 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | TINTENBLAU | 1 | 51162428092 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | ATLANTIS | 1 | 51162428349 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | AMETHYST | 1 | 51162428561 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | FLIEDER DUNKEL | 1 | 51162429179 | $454.87 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | KIRSCHROT | 1 | 51162429182 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Center arm rest | LICHTBLAU | 1 | 51162429185 | $472.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
