Individual wood rear console for BMW 5 Series E39 528i (2000)

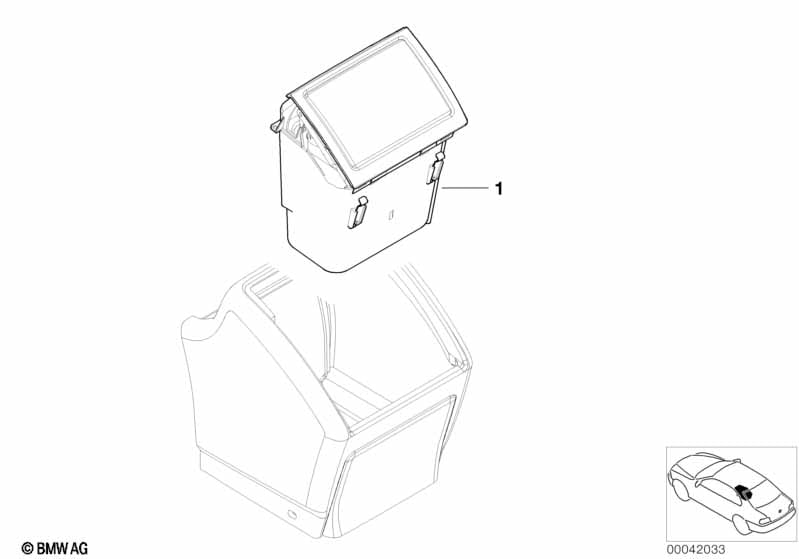

This Individual wood rear console technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Individual vehicles with SA 940 --------------------------- SA 940 = common special request --------------------------- only applies to Opt. 445 = Rear-oriented center console Opt. 446 = Rear-oriented equipment |
|||||||||
| 01 | Container, rear console | PAPPEL NATUR | 1 | 04/1999 | 51162432310 | $677.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Container, rear console | BIRKE ANTHRAZIT | 1 | 04/1999 | 51162432319 | $677.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Container, rear console | EIBE CLUB | 1 | 04/1999 | 51168009546 | $681.93 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Container, rear console | PLATANE | 1 | 04/1999 | 51168009547 | $677.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Container, rear console | BIRKE BLAU | 1 | 04/1999 | 51168009548 | $677.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Container, rear console | BIRKE GELB | 1 | 04/1999 | 51168009549 | $677.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| Individual wood, mussle maple | ||||||||||
| 01 | Container, rear console | OLIV | 1 | 12/1999 | 51162432477 | $677.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Container, rear console | ARIZONA SUN | 1 | 12/1999 | 51162432509 | $677.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 01 | Container, rear console | ENGLISCHROT | 1 | 12/1999 | 51162432541 | $677.97 | ENDED, +core, NoS | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
