Individual fine wood trim for BMW 3 Series E36 318ti (1996)

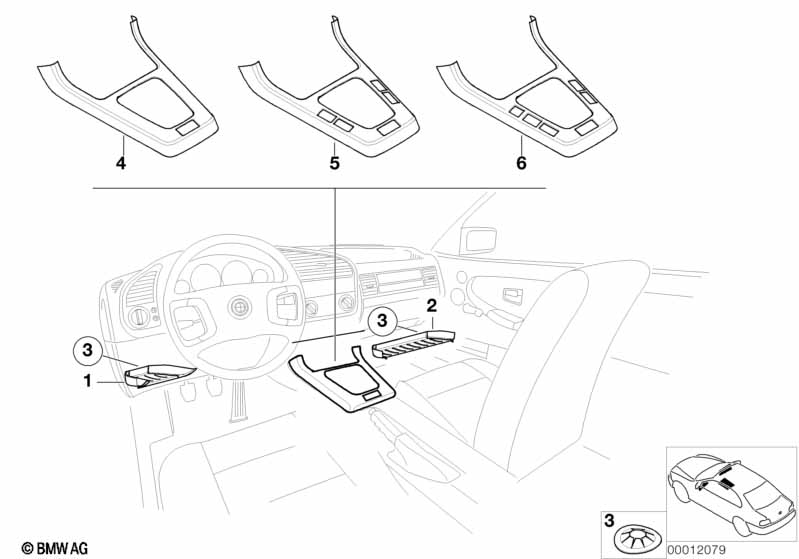

This Individual fine wood trim technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Lower left dashboard insert not for RHD Glove box insert not for USA Lower left dashboard insert not for USA |
|||||||||
| 01 | Insert | PAPPEL NATUR | 1 | 51162264014 | $892.80 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | INSERT, birchwood | ROT | 1 | 51452426279 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | INSERT, birchwood | GELB | 1 | 51452426299 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | INSERT, birchwood | BLAU | 1 | 51452426319 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | INSERT, birchwood | ANTHRAZIT | 1 | 51452428635 | $892.80 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Left-hand-drive car |
=Yes |
|||||||||
| 02 | Insert | PAPPEL NATUR | 1 | 51162266506 | $796.51 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | GLOVE BOX insert, birchwood | ROT | 1 | 51162426280 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | GLOVE BOX insert, birchwood | GELB | 1 | 51162426300 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | GLOVE BOX insert, birchwood | BLAU | 1 | 51162426320 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | INSERT, birchwood | ANTHRAZIT | 1 | 51162428632 | $892.80 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Circlip | D=4MM | 4 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| For vehicles with Left-hand-drive car |
=Yes |
|||||||||
| 04 | Storing partition cover | PAPPEL NATUR | 1 | 51162281098 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Birchwood storing partition cover | ROT | 1 | 51162426286 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Birchwood storing partition cover | GELB | 1 | 51162426306 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Birchwood storing partition cover | BLAU | 1 | 51162426326 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Birchwood storing partition cover | ANTHRAZIT | 1 | 51162428640 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Left-hand-drive car and Electr. window lifter and Seat heating |
=Yes =Yes =Yes |
|||||||||
| 05 | Storing partition cover | PAPPEL NATUR | 1 | 51162264012 | $837.00 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Birchwood storing partition cover | ROT | 1 | 51162426289 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Birchwood storing partition cover | GELB | 1 | 51162426309 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Birchwood storing partition cover | BLAU | 1 | 51162426329 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Birchwood storing partition cover | ANTHRAZIT | 1 | 51162428643 | $892.80 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
