Individual fine wood trim for BMW 5 Series E39 525d (2003)

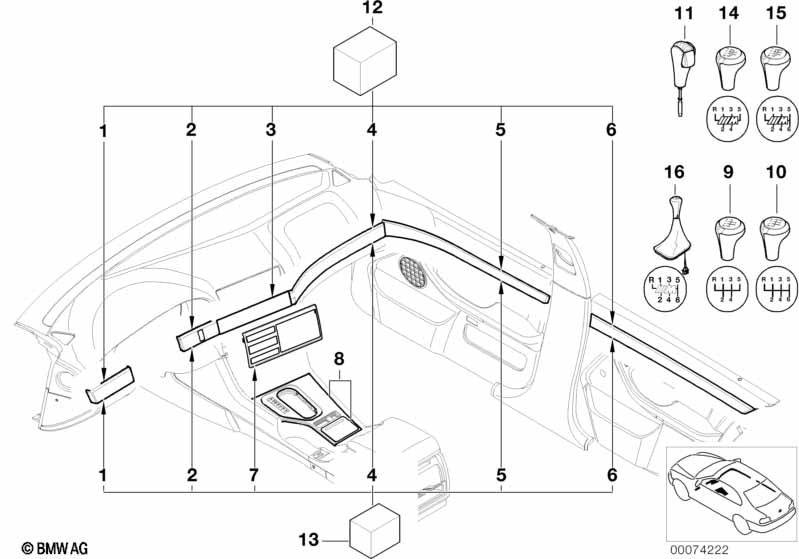

This Individual fine wood trim technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Individual vehicles with SA 940 --------------------------- SA 265 = TPMS tire pressure monitoring system Opt. 540 = Multifunction steering wheel Opt. 710 = M Sport steer. wheel, multi Opt. 602 = Onboard monitor with TV Opt. 609 = Navigation system with TV --------------------------- --------------------------- --------------------------- Cover of on-board monitor deleted from 09/2000 (16:9 screen) |
|||||||||
| For vehicles with Right hand drive |
=Yes |
|||||||||
| 01 | Wooden strip,instrument panel ext. right | PAPPEL NATUR | 1 | 51452421362 | $98.49 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Wooden strip,instrument panel ext. right | EIBE CLUB | 1 | 51452421386 | $98.49 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Wooden strip,instrument panel ext. right | PLATANE | 1 | 51452421434 | $98.49 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Wooden strip,instrument panel ext. right | BIRKE ANTHRAZIT | 1 | 51452423296 | $98.49 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Wooden strip,instrument panel ext. right | BIRKE BLAU | 1 | 51452428022 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Wooden strip,instrument panel ext. right | BIRKE GELB | 1 | 51452428360 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Wooden strip,instrument panel ext. right | OLIV | 1 | 51452432454 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Wooden strip,instrument panel ext. right | ARIZONA SUN | 1 | 51452432486 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Wooden strip,instrument panel ext. right | ENGLISCHROT | 1 | 51452432518 | ENDED, NoS | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | PAPPEL NATUR | 1 | 51452421364 | +core, NoS | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | EIBE CLUB | 1 | 51452421388 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | PLATANE | 1 | 51452421436 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | BIRKE ANTHRAZIT | 1 | 51452423298 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | BIRKE BLAU | 1 | 51452428024 | ENDED, NoS | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | BIRKE GELB | 1 | 51452428362 | ENDED, NoS | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | OLIV | 1 | 51452432456 | ENDED, NoS | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | ARIZONA SUN | 1 | 51452432488 | ENDED, NoS | Shop at ECS Tuning | ||||
| 02 | Wooden strip,instrument panel cent. rght | ENGLISCHROT | 1 | 51452432520 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Right hand drive Tire pressure monitoring system (TPMS) |
=Yes |
|||||||||
| 02 | Wooden strip,instrument panel cent. rght | PAPPEL NATUR | 1 | 03/1998 | 51452421366 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Wooden strip,instrument panel cent. rght | EIBE CLUB | 1 | 03/1998 | 51452421390 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Wooden strip,instrument panel cent. rght | PLATANE | 1 | 03/1998 | 51452421438 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Wooden strip,instrument panel cent. rght | BIRKE ANTHRAZIT | 1 | 03/1998 | 51452423300 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Wooden strip,instrument panel cent. rght | BIRKE BLAU | 1 | 03/1998 | 51452428026 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Wooden strip,instrument panel cent. rght | BIRKE GELB | 1 | 03/1998 | 51452428364 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Wooden strip,instrument panel cent. rght | OLIV | 1 | 03/1998 | 51452432458 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Wooden strip,instrument panel cent. rght | ARIZONA SUN | 1 | 03/1998 | 51452432490 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Wooden strip,instrument panel cent. rght | ENGLSCHROT | 1 | 03/1998 | 51452432522 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | PAPPEL NATUR | 1 | 51452421367 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Wooden cover f radio flap | EIBE CLUB | 1 | 51452421391 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Wooden cover f radio flap | PLATANE | 1 | 51452421439 | $139.50 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | BIRKE ANTHRAZIT | 1 | 51452423301 | $139.50 | ENDED | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | BIRKE BLAU | 1 | 51452428016 | $139.50 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | BIRKE GELB | 1 | 51452428369 | $139.50 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | OLIV | 1 | 51452432463 | $139.50 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | ARIZONA SUN | 1 | 51452432495 | $139.50 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | ENGLISCHROT | 1 | 51452432527 | $155.80 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Right hand drive |
=Yes |
|||||||||
| 04 | Wooden strip,instrument panel left | PAPPEL NATUR | 1 | 51452421369 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden strip,instrument panel left | EIBE CLUB | 1 | 51452421393 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden strip,instrument panel left | PLATANE | 1 | 51452421441 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden strip,instrument panel left | BIRKE ANTHRAZIT | 1 | 51452423303 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Wooden strip,instrument panel left | BIRKE BLAU | 1 | 51452428029 | $160.70 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Wooden strip,instrument panel left | BIRKE GELB | 1 | 51452428368 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Wooden strip,instrument panel left | OLIV | 1 | 51452432465 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Wooden strip,instrument panel left | ARIZONA SUN | 1 | 51452432497 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Wooden strip,instrument panel left | ENGLISCHROT | 1 | 51452432529 | ENDED, NoS | Shop at ECS Tuning | ||||
| RIGHT FRONT DOOR WOOD COVER | ||||||||||
| 05 | Wooden strip, door front right | PAPPEL NATUR | 1 | 51412421358 | $160.70 | ENDED | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front right | EIBE CLUB | 1 | 51412421382 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front right | PLATANE | 1 | 51412421430 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front right | BIRKE ANTHRAZIT | 1 | 51412423292 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front right | BIRKE BLAU | 1 | 51412428018 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front right | BIRKE GELB | 1 | 51412428356 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front right | OLIV | 1 | 51412432460 | $160.70 | ENDED, NoS | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front right | ARIZONA SUN | 1 | 51412432492 | $160.70 | ENDED, NoS | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front right | ENGLISCHROT | 1 | 51412432524 | $160.70 | ENDED, NoS | Shop at ECS Tuning | |||
| LEFT FRONT DOOR WOOD COVER | ||||||||||
| 05 | Wooden strip, door front left | PAPPEL NATUR | 1 | 51412421357 | $190.39 | ENDED | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front left | EIBE CLUB | 1 | 51412421381 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front left | PLATANE | 1 | 51412421429 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front left | BIRKE ANTHRAZIT | 1 | 51412423291 | $160.70 | ENDED | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front left | BIRKE BLAU | 1 | 51412428017 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front left | BIRKE GELB | 1 | 51412428355 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front left | OLIV | 1 | 51412432459 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front left | ARIZONA SUN | 1 | 51412432491 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Wooden strip, door front left | ENGLISCHROT | 1 | 51412432523 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| RIGHT REAR DOOR WOOD COVER | ||||||||||
| 06 | Wooden strip, door rear right | BIRKE ANTHRAZIT | 1 | 51412423294 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | PAPPEL NATUR | 1 | 51422421360 | $160.70 | +core | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | EIBE CLUB | 1 | 51422421384 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | PLATANE | 1 | 51422421432 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | BIRKE BLAU | 1 | 51422428020 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | BIRKE GELB | 1 | 51422428358 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | OLIV | 1 | 51422432462 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | ARIZONA SUN | 1 | 51422432494 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear right | ENGLISCHROT | 1 | 51422432526 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| LEFT REAR DOOR WOOD COVER | ||||||||||
| 06 | Wooden strip, door rear left | BIRKE ANTHRAZIT | 1 | 51412423293 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | PAPPEL NATUR | 1 | 51422421359 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | EIBE CLUB | 1 | 51422421383 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | PLATANE | 1 | 51422421431 | $160.70 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | BIRKE BLAU | 1 | 51422428019 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | BIRKE GELB | 1 | 51422428357 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | OLIV | 1 | 51422432461 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | ARIZONA SUN | 1 | 51422432493 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Wooden strip, door rear left | ENGLISCHROT | 1 | 51422432525 | $160.70 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Right hand drive |
=Yes |
|||||||||
| 08 | Center console insert, centre | PAPPEL NATUR | 1 | 51162421493 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | EIBE CLUB | 1 | 51162421495 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | PLATANE | 1 | 51162421499 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | BIRKE ANTHRAZIT | 1 | 51162423315 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | BIRKE BLAU | 1 | 51162428040 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | BIRKE GELB | 1 | 51162428380 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | OLIV | 1 | 51162432471 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | ARIZONA SUN | 1 | 51162432503 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | Center console insert, centre | ENGLISCHROT | 1 | 51162432535 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Wooden trim and Automatic transmission |
=Yes =Yes |
|||||||||
| 11 | Selector-lever leather grip/Poplar ring | NATUR | 1 | 25162421480 | $205.05 | ENDED | Shop at ECS Tuning | |||
| 11 | Selector lever handle,leath.,w/wood ring | EIBE CLUB | 1 | 25162421481 | $213.16 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 11 | Selector lever handle,leath.,w/wood ring | PLANTANE | 1 | 25162421483 | $213.16 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 11 | Selector lever handle,leath.,w/wood ring | BIRKE ANTHRAZIT | 1 | 25162423318 | $209.95 | ENDED | Shop at ECS Tuning | |||
| 11 | Selector lever handle,leath.,w/wood ring | BIRKE BLAU | 1 | 25162428045 | $214.27 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 11 | Selector lever handle,leath.,w/wood ring | BIRKE GELB | 1 | 25162428385 | $214.27 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 11 | Selector lever handle,leath.,w/wood ring | OLIV | 1 | 25162432474 | $214.27 | ENDED, NoS | Shop at ECS Tuning | |||
| 11 | Selector lever handle,leath.,w/wood ring | ARIZONA SUN | 1 | 25162432506 | $214.27 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 11 | Selector lever handle,leath.,w/wood ring | ENGLISCHROT | 1 | 25162432538 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| For vehicles with Right hand drive |
=Yes |
|||||||||
| 12 | Repair kit wood cover | OLIV | 1 | 51412432469 | ENDED, NoS | Shop at ECS Tuning | ||||
| 12 | Repair kit wood cover | ARIZONA SUN | 1 | 51412432501 | ENDED, NoS | Shop at ECS Tuning | ||||
| 12 | Repair kit wood cover | ENGLISCHROT | 1 | 51412432533 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Right hand drive Tire pressure monitoring system (TPMS) |
=Yes |
|||||||||
| 12 | Repair kit wood cover | OLIV | 1 | 03/1998 | 51412432479 | ENDED, NoS | Shop at ECS Tuning | |||
| 12 | Repair kit wood cover | ARIZONA SUN | 1 | 03/1998 | 51412432511 | ENDED, NoS | Shop at ECS Tuning | |||
| 12 | Repair kit wood cover | ENGLISCHROT | 1 | 03/1998 | 51412432543 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Right hand drive and On-board monitor |
=Yes =Yes |
|||||||||
| 13 | Repair kit wood cover | OLIV | 1 | 51412432481 | ENDED, NoS | Shop at ECS Tuning | ||||
| 13 | Repair kit wood cover | ARIZONA SUN | 1 | 51412432513 | ENDED, NoS | Shop at ECS Tuning | ||||
| 13 | Repair kit wood cover | ENGLISCHROT | 1 | 51412432545 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Right hand drive and On-board monitor Tire pressure monitoring system (TPMS) |
=Yes =Yes |
|||||||||
| 13 | Repair kit wood cover | OLIV | 1 | 03/1998 | 51412432483 | ENDED, NoS | Shop at ECS Tuning | |||
| 13 | Repair kit wood cover | ARIZONA SUN | 1 | 03/1998 | 51412432515 | ENDED, NoS | Shop at ECS Tuning | |||
| 13 | Repair kit wood cover | ENGLISCHROT | 1 | 03/1998 | 51412432547 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
