Interior individual covers, with leather for BMW 5 Series E39 525d (2003)

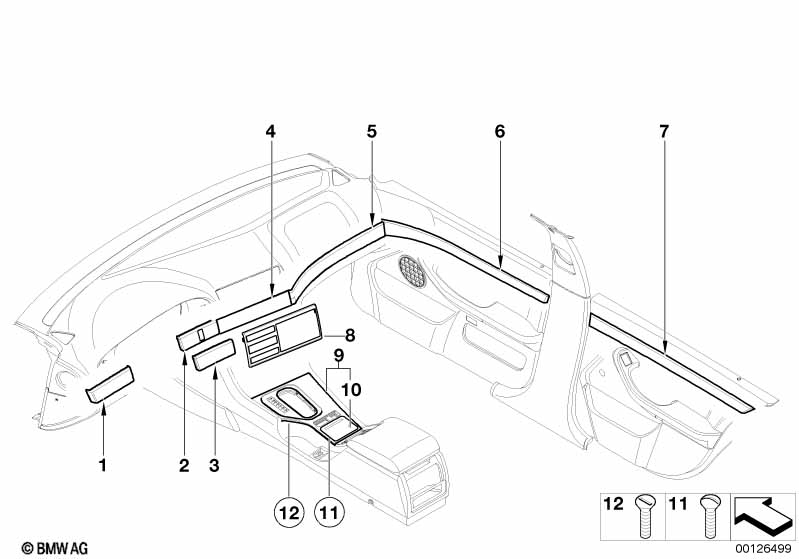

This Interior individual covers, with leather technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX or Individual vehicles with SA 940 --------------------------- --------------------------- --------------------------- --------------------------- |
|||||||||
| Trim strip, instr. panel, outer left nappa leather = walk nappa |
||||||||||
| 01 | Finisher, dashboard, exterior left | CASSIS | 1 | 51452427709 | $94.30 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Finisher, dashboard, exterior left | SEPIA DUNKEL | 1 | 51458014671 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Finisher, dashboard, exterior left | ARIZONA SUN | 1 | 51458014731 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Finisher, dashboard, exterior left | ECRU | 1 | 51458014789 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Finisher, dashboard, exterior left | KASTANIE HELL | 1 | 51458014847 | ENDED, NoS | Shop at ECS Tuning | ||||
| Trim strip, instr. panel, outer left leather Montana |
||||||||||
| 01 | Finisher, dashboard, exterior left | LIGHTGELB | 1 | 51450027291 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Finisher, dashboard, exterior left | GRAU | 1 | 51458014473 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Finisher, dashboard, exterior left | SANDBEIGE | 1 | 51458015145 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Finisher, dashboard, exterior left | KÖNIGSBLAU | 1 | 51458016237 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Tyre pressure control (TPC) Finisher, dashboard, center, left leather Montana |
S265A=Yes |
|||||||||
| 02 | Finisher, dashboard, center, left | LIGHTGELB | 1 | 03/1998 | 51450027294 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Finisher, dashboard, center, left | GRAU | 1 | 03/1998 | 51458014477 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Finisher, dashboard, center, left | SANDBEIGE | 1 | 03/1998 | 51458015149 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Finisher, dashboard, center, left | KÖNIGSBLAU | 1 | 03/1998 | 51458016241 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Tyre pressure control (TPC) Finisher, dashboard, center, left nappa leather = walk nappa |
S265A=Yes |
|||||||||
| 02 | Finisher, dashboard, center, left | CASSIS | 1 | 03/1998 | 51452427715 | $94.30 | ENDED, NoS | Shop at ECS Tuning | ||
| 02 | Finisher, dashboard, center, left | SEPIA DUNKEL | 1 | 03/1998 | 51458014675 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Finisher, dashboard, center, left | ARIZONA SUN | 1 | 03/1998 | 51458014735 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Finisher, dashboard, center, left | ECRU | 1 | 03/1998 | 51458014793 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Finisher, dashboard, center, left | KASTANIE HELL | 1 | 03/1998 | 51458014851 | ENDED, NoS | Shop at ECS Tuning | |||
| Finisher, dashboard, center, left leather Montana |
||||||||||
| 03 | Finisher, dashboard, center, left | LIGHTGELB | 1 | 51450027295 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Finisher, dashboard, center, left | GRAU | 1 | 51458014475 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Finisher, dashboard, center, left | SANDBEIGE | 1 | 51458015147 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Finisher, dashboard, center, left | KÖNIGSBLAU | 1 | 51458016239 | ENDED, NoS | Shop at ECS Tuning | ||||
| Finisher, dashboard, center, left nappa leather = walk nappa |
||||||||||
| 03 | Finisher, dashboard, center, left | SCHWARZ | 1 | 51450007246 | $94.30 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Finisher, dashboard, center, left | CASSIS | 1 | 51452427711 | $94.30 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Finisher, dashboard, center, left | SEPIA DUNKEL | 1 | 51458014673 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Finisher, dashboard, center, left | ARIZONA SUN | 1 | 51458014733 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Finisher, dashboard, center, left | ECRU | 1 | 51458014791 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Finisher, dashboard, center, left | KASTANIE HELL | 1 | 51458014849 | ENDED, NoS | Shop at ECS Tuning | ||||
| Finisher, dashboard, center leather Montana |
||||||||||
| 04 | Finisher, dashboard, center | LIGHTGELB | 1 | 51450027296 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Finisher, dashboard, center | GRAU | 1 | 51458014476 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Finisher, dashboard, center | SANDBEIGE | 1 | 51458015148 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Finisher, dashboard, center | KÖNIGSBLAU | 1 | 51458016240 | ENDED, NoS | Shop at ECS Tuning | ||||
| Finisher, dashboard, center nappa leather = walk nappa |
||||||||||
| 04 | Finisher, dashboard, center | CASSIS | 1 | 51452427712 | $94.30 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Finisher, dashboard, center | SEPIA DUNKEL | 1 | 51458014674 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Finisher, dashboard, center | ARIZONA SUN | 1 | 51458014734 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Finisher, dashboard, center | ECRU | 1 | 51458014792 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Finisher, dashboard, center | KASTANIE HELL | 1 | 51458014850 | ENDED, NoS | Shop at ECS Tuning | ||||
| Finisher, dashboard, right Leather Nappa = upholstery leather, soft |
||||||||||
| 05 | Finisher, dashboard, right | MARINEBLAU | 1 | 51450000412 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| Finisher, dashboard, right leather Montana |
||||||||||
| 05 | Finisher, dashboard, right | LIGHTBELB | 1 | 51450027297 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Finisher, dashboard, right | GRAU | 1 | 51458014474 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Finisher, dashboard, right | SANDBEIGE | 1 | 51458015146 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Finisher, dashboard, right | KÖNIGSBLAU | 1 | 51458016238 | ENDED, NoS | Shop at ECS Tuning | ||||
| Finisher, dashboard, right nappa leather = walk nappa |
||||||||||
| 05 | Finisher, dashboard, right | CASSIS | 1 | 51452427710 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 05 | Finisher, dashboard, right | SEPIA DUNKEL | 1 | 51458014672 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Finisher, dashboard, right | ARIZONA SUN | 1 | 51458014732 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Finisher, dashboard, right | ECRU | 1 | 51458014790 | ENDED, NoS | Shop at ECS Tuning | ||||
| 05 | Finisher, dashboard, right | KASTANIE HELL | 1 | 51458014848 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, front left leather Montana |
||||||||||
| 06 | Molding, leather, door, front left | LIGHTGELB | 1 | 51410027305 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front left | GRAU | 1 | 51418014467 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front left | SANDBEIGE | 1 | 51418015139 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front left | KÖNIGSBLAU | 1 | 51418016231 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, front left nappa leather = walk nappa |
||||||||||
| 06 | Molding, leather, door, front left | CASSIS | 1 | 51412427703 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 06 | Molding, leather, door, front left | SEPIA DUNKEL | 1 | 51418014667 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front left | ARIZONA SUN | 1 | 51418014725 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front left | ECRU | 1 | 51418014783 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front left | KASTANIE HELL | 1 | 51418014843 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, front right leather Montana |
||||||||||
| 06 | Molding, leather, door, front right | LIGHTGELB | 1 | 51410027300 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front right | GRAU | 1 | 51418014468 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front right | SANDBEIGE | 1 | 51418015140 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front right | KÖNIGSBLAU | 1 | 51418016232 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, front right nappa leather = walk nappa |
||||||||||
| 06 | Molding, leather, door, front right | CASSIS | 1 | 51412427704 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 06 | Molding, leather, door, front right | SEPIA DUNKEL | 1 | 51418014668 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front right | ARIZONA SUN | 1 | 51418014726 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front right | ECRU | 1 | 51418014784 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Molding, leather, door, front right | KASTANIE HELL | 1 | 51418014844 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, rear left leather Montana |
||||||||||
| 07 | Molding, leather, door, rear left | GRAU | 1 | 51418014469 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear left | SANDBEIGE | 1 | 51418015141 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear left | LIGHTGELB | 1 | 51420027299 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear left | KÖNIGSBLAU | 1 | 51428016233 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, rear left nappa leather = walk nappa |
||||||||||
| 07 | Molding, leather, door, rear left | CASSIS | 1 | 51422427705 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 07 | Molding, leather, door, rear left | SEPIA DUNKEL | 1 | 51428014669 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear left | ARIZONA SUN | 1 | 51428014727 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear left | ECRU | 1 | 51428014785 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear left | KASTANIE HELL | 1 | 51428014845 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, rear left Leather Nappa = upholstery leather, soft |
||||||||||
| 07 | Molding, leather, door, rear left | MARINEBLAU | 1 | 51420031866 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, rear right Leather Nappa = upholstery leather, soft |
||||||||||
| 07 | Molding, leather, door, rear right | MARINEBLAU | 1 | 51420031867 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, rear right leather Montana |
||||||||||
| 07 | Molding, leather, door, rear right | GRAU | 1 | 51418014470 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear right | SANDBEIGE | 1 | 51418015142 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear right | LIGHTGELB | 1 | 51420027302 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear right | KÖNIGSBLAU | 1 | 51428016234 | ENDED, NoS | Shop at ECS Tuning | ||||
| Molding, leather, door, rear right nappa leather = walk nappa |
||||||||||
| 07 | Molding, leather, door, rear right | CASSIS | 1 | 51422427706 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 07 | Molding, leather, door, rear right | SEPIA DUNKEL | 1 | 51428014670 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear right | ARIZONA SUN | 1 | 51428014728 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear right | ECRU | 1 | 51428014786 | ENDED, NoS | Shop at ECS Tuning | ||||
| 07 | Molding, leather, door, rear right | KASTANIE HELL | 1 | 51428014846 | ENDED, NoS | Shop at ECS Tuning | ||||
| On-board monitor leather cover nappa leather = walk nappa |
||||||||||
| 08 | On-board monitor leather cover | CASSIS | 1 | 51162427716 | $233.24 | ENDED, NoS | Shop at ECS Tuning | |||
| 08 | On-board monitor leather cover | SEPIA DUNKEL | 1 | 51168014677 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | On-board monitor leather cover | ARIZONA SUN | 1 | 51168014736 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | On-board monitor leather cover | ECRU | 1 | 51168014794 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | On-board monitor leather cover | KASTANIE HELL | 1 | 51168014853 | ENDED, NoS | Shop at ECS Tuning | ||||
| On-board monitor leather cover leather Montana |
||||||||||
| 08 | On-board monitor leather cover | LIGHTGELB | 1 | 51160027306 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | On-board monitor leather cover | GRAU | 1 | 51168014478 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | On-board monitor leather cover | SANDBEIGE | 1 | 51168015150 | ENDED, NoS | Shop at ECS Tuning | ||||
| 08 | On-board monitor leather cover | KÖNIGSBLAU | 1 | 51168016242 | ENDED, NoS | Shop at ECS Tuning | ||||
| leather Montana Insert, center console, center, leather |
||||||||||
| 09 | Insert, center console, center, leather | LIGHTGELB | 1 | 51160027303 | ENDED, NoS | Shop at ECS Tuning | ||||
| 09 | Insert, center console, center, leather | GRAU | 1 | 51168014471 | ENDED, NoS | Shop at ECS Tuning | ||||
| 09 | Insert, center console, center, leather | SANDBEIGE | 1 | 51168015143 | ENDED, NoS | Shop at ECS Tuning | ||||
| 09 | Insert, center console, center, leather | KÖNIGSBLAU | 1 | 51168016235 | ENDED, NoS | Shop at ECS Tuning | ||||
| nappa leather = walk nappa Insert, center console, center, leather |
||||||||||
| 09 | Insert, center console, center, leather | CASSIS | 1 | 51162427707 | $585.90 | ENDED, NoS | Shop at ECS Tuning | |||
| 09 | Insert, center console, center, leather | SEPIA DUNKEL | 1 | 51168014652 | ENDED, NoS | Shop at ECS Tuning | ||||
| 09 | Insert, center console, center, leather | ARIZONA SUN | 1 | 51168014729 | ENDED, NoS | Shop at ECS Tuning | ||||
| 09 | Insert, center console, center, leather | ECRU | 1 | 51168014787 | ENDED, NoS | Shop at ECS Tuning | ||||
| 09 | Insert, center console, center, leather | KASTANIE HELL | 1 | 51168014828 | ENDED, NoS | Shop at ECS Tuning | ||||
| Lid, bottom panel, centre console, leather leather Montana |
||||||||||
| 10 | Lid, bottom, center console, leather | LIGHTGELB | 1 | 51160027304 | ENDED, NoS | Shop at ECS Tuning | ||||
| 10 | Lid, bottom, center console, leather | GRAU | 1 | 51168014472 | ENDED, NoS | Shop at ECS Tuning | ||||
| 10 | Lid, bottom, center console, leather | SANDBEIGE | 1 | 51168015144 | ENDED, NoS | Shop at ECS Tuning | ||||
| 10 | Lid, bottom, center console, leather | KÖNIGSBLAU | 1 | 51168016236 | ENDED, NoS | Shop at ECS Tuning | ||||
| Lid, bottom panel, centre console, leather nappa leather = walk nappa |
||||||||||
| 10 | Lid, bottom, center console, leather | CASSIS | 1 | 51162427708 | $171.86 | ENDED, NoS | Shop at ECS Tuning | |||
| 10 | Lid, bottom, center console, leather | SEPIA DUNKEL | 1 | 51168014676 | ENDED, NoS | Shop at ECS Tuning | ||||
| 10 | Lid, bottom, center console, leather | ARIZONA SUN | 1 | 51168014730 | ENDED, NoS | Shop at ECS Tuning | ||||
| 10 | Lid, bottom, center console, leather | ECRU | 1 | 51168014788 | ENDED, NoS | Shop at ECS Tuning | ||||
| 10 | Lid, bottom, center console, leather | KASTANIE HELL | 1 | 51168014852 | ENDED, NoS | Shop at ECS Tuning | ||||
| 11 | Countersunk head screw | M3 | 4 | 51162425842 | $0.86 | ENDED, NoS | Shop at ECS Tuning | |||
| 12 | Oval head screw | M3 | X | 51162425841 | $0.44 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
