Individ. wood centre console/cup holder for BMW 7 Series E38 725tds (2000)

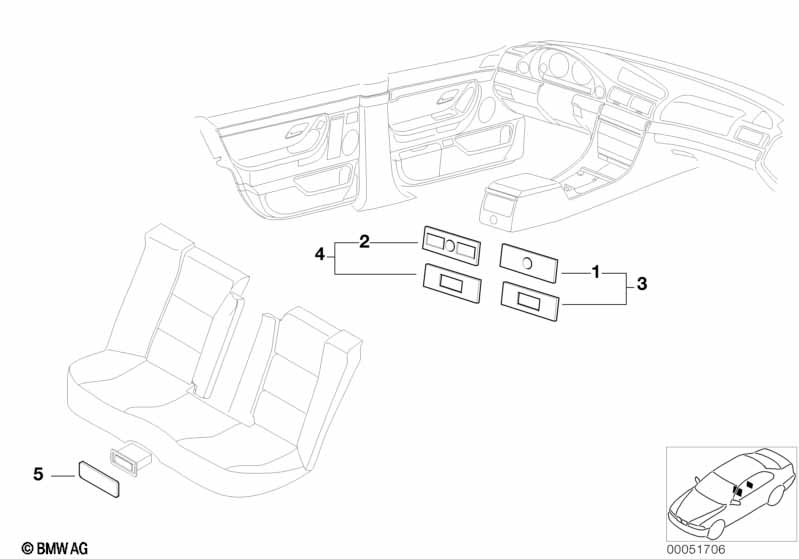

This Individ. wood centre console/cup holder technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Individ. wood centre console/cup holder
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i only applies to
SA 940 = common special request
---------------------------
---------------------------
01 Cover center console PAPPEL NATUR 1 09/1995 51162279669 $1277.82 ENDED, +core, NoS Shop at ECS Tuning
01 Cover center console EIBE CLUB 1 09/1995 51162279679 $123.88 ENDED, +core, NoS Shop at ECS Tuning
01 Cover center console PLATANE 1 09/1995 51162279699 $123.88 ENDED, +core, NoS Shop at ECS Tuning
01 Cover center console BIRKE ANTHRAZIT 1 09/1995 51162423087 $141.92 ENDED Shop at ECS Tuning
01 Cover center console BIRKE BLAU 1 09/1995 51162428426 $112.72 ENDED, +core, NoS Shop at ECS Tuning
01 Cover center console BIRKE ROT 1 09/1995 51162429379 $112.72 ENDED, +core, NoS Shop at ECS Tuning
01 Cover center console ARIZONA SUN 1 10/1998 51168010037 $112.72 ENDED, +core, NoS Shop at ECS Tuning
01 Cover center console ENGLISCHROT 1 10/1998 51168010101 $112.72 ENDED, +core, NoS Shop at ECS Tuning
01 Cover center console OLIV 1 05/1999 51168010165 $112.72 ENDED, +core, NoS Shop at ECS Tuning
01 Cover center console BRUYERE CLUB 1 05/1999 51168011119 $112.72 ENDED, +core, NoS Shop at ECS Tuning
For vehicles with
SA 496 = Heating for rear seats

=Yes
02 Cover center console PAPPEL NATUR 1 09/1995 51162279736 $142.85 ENDED, +core Shop at ECS Tuning
02 Cover center console EIBE CLUB 1 09/1995 51162279745 $142.85 ENDED, +core, NoS Shop at ECS Tuning
02 Cover center console PLATANE 1 09/1995 51162279763 $142.85 ENDED, +core, NoS Shop at ECS Tuning
02 Cover center console BIRKE ANTHRAZIT 1 09/1995 51162423088 $141.92 ENDED, +core, NoS Shop at ECS Tuning
02 Cover center console BIRKE BLAU 1 09/1995 51162428427 $142.85 ENDED, +core, NoS Shop at ECS Tuning
02 Cover center console ARIZONA SUN 1 10/1998 51168010038 $142.85 ENDED, +core, NoS Shop at ECS Tuning
02 Cover center console ENGLISCHROT 1 10/1998 51168010102 $142.85 ENDED, +core, NoS Shop at ECS Tuning
02 Cover center console OLIV 1 05/1999 51168010166 $142.85 ENDED, +core, NoS Shop at ECS Tuning
02 Cover center console BRUYERE CLUB 1 05/1999 51168011120 $142.85 ENDED, +core, NoS Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • NoS = No Stock (Part centrally not stocked)

See Also

Frequently Asked Questions

What assembly is shown in the BMW 7 Series E38 725tds Individ. wood centre console/cup holder?
This technical diagram illustrates the Individ. wood centre console/cup holder within the Individual equipment group for the 7 Series E38 725tds produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Cover center console (Part #51162279669).
Which models use the hardware listed in this Individ. wood centre console/cup holder?
The hardware and components featured in the Individ. wood centre console/cup holder are specific to the 7 Series E38 725tds produced during 2000. These technical specifications ensure that parts like the Cover center console (51162279669) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Individ. wood centre console/cup holder assembly?
Each item in the Individ. wood centre console/cup holder corresponds to the numbered list below the illustration. For the 7 Series E38 725tds, you can identify the Cover center console by locating its position on the schematic, which then links to the official BMW part number 51162279669 for the Individual equipment section.
