Individual fine wood trim for BMW 8 Series E31 840Ci (1997)

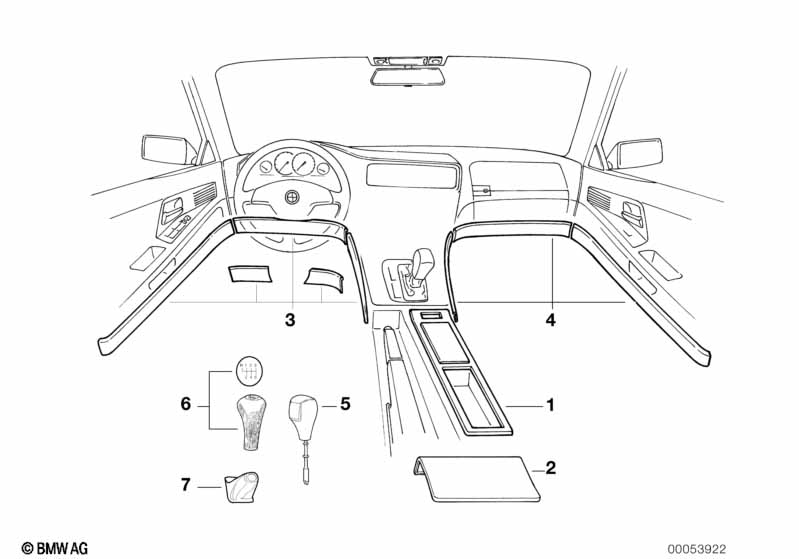

This Individual fine wood trim technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 840Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to SA 940 = common special request --------------------------- Special wood is not approved for all models and option environments --------------------------- |
|||||||||
| 01 | Front console insert | BEIGE 0110 | 1 | 51162138618 | ENDED | Shop at ECS Tuning | ||||
| 01 | Front console insert | GRAU 0120 | 1 | 51162138624 | ENDED | Shop at ECS Tuning | ||||
| 01 | Front console insert | GRAPHIT 0130 | 1 | 51162138630 | $503.60 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Front console insert | SCHWARZ | 1 | 51162138636 | $591.48 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Front console insert | PAPPEL NATUR | 1 | 51162138642 | ENDED | Shop at ECS Tuning | ||||
| 01 | Front console insert | CLASSIC NUßBAUM | 1 | 51162275464 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Front console insert | PLATANE | 1 | 51162275497 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Front console insert | BIRKE ANTHRAZIT | 1 | 51162423355 | $451.98 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Front console insert | NUßBAUM WURZEL. | 1 | 51162428262 | $530.10 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Telephone |
=Yes |
|||||||||
| 01 | Front console insert | BEIGE 0110 | 1 | 51162138620 | $512.24 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Front console insert | GRAU 0120 | 1 | 51162138626 | ENDED | Shop at ECS Tuning | ||||
| 01 | Front console insert | GRAPHIT 0130 | 1 | 51162138632 | $498.85 | ENDED | Shop at ECS Tuning | |||
| 01 | Front console insert | PAPPEL NATUR | 1 | 51162138644 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Front console insert | CLASSIC NUßBAUM | 1 | 51162275462 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Front console insert | PLATANE | 1 | 51162275498 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Front console insert | BIRKE ANTHRAZIT | 1 | 51162423357 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wood cover, center consola | BEIGE 0110 | 1 | 51162138617 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wood cover, center consola | GRAU 0120 | 1 | 51162138623 | ENDED, NoS | Shop at ECS Tuning | ||||
| 02 | Wood cover, center consola | GRAPHIT 0130 | 1 | 51162138629 | $388.83 | ENDED | Shop at ECS Tuning | |||
| 02 | Wood cover, center consola | PAPPEL NATUR | 1 | 51162138641 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Wood cover, center consola | CLASSIC NUßBAUM | 1 | 51162275466 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Wood cover, center consola | PLATANE | 1 | 51162275496 | ENDED | Shop at ECS Tuning | ||||
| 02 | Wood cover, center consola | NUßBAUM WURZEL. | 1 | 51162428261 | $332.57 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Telephone |
=Yes |
|||||||||
| 02 | Front console insert | NUßBAUM WURZEL. | 1 | 51162428264 | $530.10 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Set of wooden covers, vogelaugenahorn | BEIGE 0110 | 1 | 51452275413 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers, vogelaugenahorn | GRAU 0120 | 1 | 51452275427 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers, vogelaugenahorn | GRAPHIT 0130 | 1 | 51452275441 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | PAPPEL NATUR | 1 | 51452275455 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | CLASSIC NUßBAUM | 1 | 51452275469 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | PLATANE | 1 | 51452275483 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | BIRKE ANTHRAZIT | 1 | 51452423359 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | NUßBAUM WURZEL. | 1 | 51452428265 | $1534.50 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Steering wheel column adjustment,electr. |
=Yes |
|||||||||
| 03 | Set of wooden covers, vogelaugenahorn | BEIGE 0110 | 1 | 51452275423 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers, vogelaugenahorn | GRAU 0120 | 1 | 51452275437 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | GRAPHIT 0130 | 1 | 51452275451 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | PAPPEL NATUR | 1 | 51452275465 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | CLASSIC NUßBAUM | 1 | 51452275479 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | PLATANE | 1 | 51452275493 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | BIRKE ANTHRAZIT | 1 | 51452423369 | ENDED | Shop at ECS Tuning | ||||
| 03 | Set of wooden covers | NUßBAUM WURZEL. | 1 | 51452428275 | $1015.56 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Set of wooden covers, vogelaugenahorn | BEIGE 0110 | 1 | 51452275412 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set of wooden covers, vogelaugenahorn | GRAU 0120 | 1 | 51452275426 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set of wooden covers | GRAPHIT 0130 | 1 | 51452275440 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Set of wooden covers | PAPPEL NATUR | 1 | 51452275454 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set of wooden covers | CLASSIC NUßBAUM | 1 | 51452275468 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set of wooden covers | PLATANE | 1 | 51452275482 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set of wooden covers | BIRKE ANTHRAZIT | 1 | 51452423358 | ENDED | Shop at ECS Tuning | ||||
| 04 | Set of wooden covers | NUßBAUM WURZEL. | 1 | 51452428266 | $1534.50 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission M62 / M73 |
=Yes |
|||||||||
| 05 | Selector lever handle,wood nussb.-wurzel | HOCHGLANZ 93 | 1 | 03/1996 | 25161421840 | $171.95 | ENDED | Shop at ECS Tuning | ||
| 05 | Selector lever handle,wood nussb.-wurzel | HOCHGLANZ 91 | 1 | 03/1996 | 25162277563 | $214.27 | ENDED, NoS | Shop at ECS Tuning | ||
| 05 | Wooden selector lever handle | BUBINGA MATT | 1 | 03/1996 | 25162277564 | ENDED | Shop at ECS Tuning | |||
| 05 | Wooden selector lever handle | BUBINGA GLANZ | 1 | 03/1996 | 25162277565 | ENDED | Shop at ECS Tuning | |||
| 05 | Selector lever handle,wood vogelaugenah. | BEIZTON 92 | 1 | 03/1996 | 25162277566 | ENDED | Shop at ECS Tuning | |||
| 05 | Selector lever handle,wood vogelaugenah. | GRAPHIT 0130 | 1 | 03/1996 | 25162277567 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Selector lever handle,wood vogelaugenah. | GRAU 0120 | 1 | 03/1996 | 25162277568 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Selector lever handle,wood vogelaugenah. | BEIGE 0110 | 1 | 03/1996 | 25162277569 | $209.95 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Wooden selector lever handle | EIBE CLUB | 1 | 03/1996 | 25162277570 | $211.85 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 05 | Wooden selector lever handle | PAPPEL NATUR | 1 | 03/1996 | 25162277571 | $214.27 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 05 | Wooden selector lever handle | CLASSIC NUßBAUM | 1 | 03/1996 | 25162277572 | $209.95 | ENDED, +core | Shop at ECS Tuning | ||
| 05 | Wooden selector lever handle | PLATANE | 1 | 03/1996 | 25162277573 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Wooden selector lever handle | BIRKE ANTHRAZIT | 1 | 03/1996 | 25162423086 | $207.14 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
