Individual decor strips for BMW 3 Series E46 318i (2001)

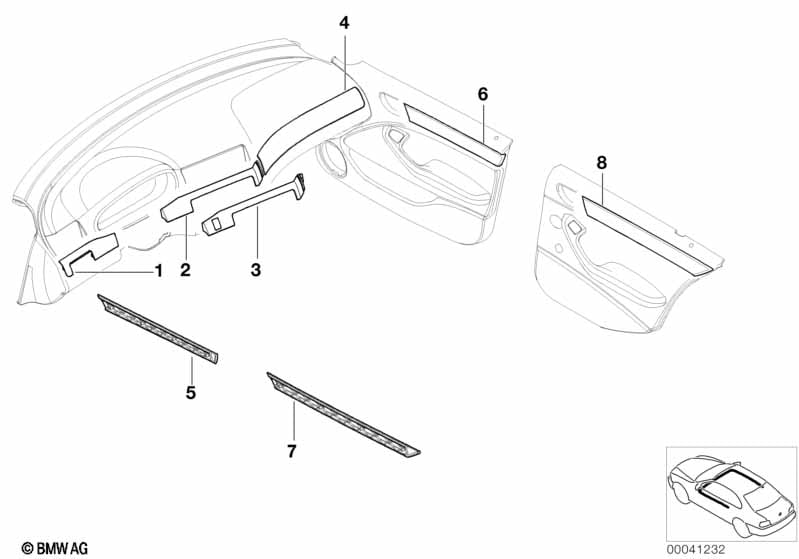

This Individual decor strips technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Individual vehicles with SA 940 --------------------------- E46/3/4 = Pos. 1 - 8 E46/2/C/5 = Pos. 1 - 4 --------------------------- --------------------------- englischrot = kastanie |
|||||||||
| For vehicles with Left-hand-drive car PAINTED PARTS |
=Yes |
|||||||||
| 01 | Instrum. panel decor strip left, painted | CODE - UNI/MET. | 1 | 51450139211 | $118.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Decorative strip, I-panel, left primed | 1 | 51457904025 | $17.86 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Left-hand-drive car Individual wood |
=Yes |
|||||||||
| 01 | Decorative strip, dashboard left | BIRKE ANTHRAZIT | 1 | 51458008987 | $109.42 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Decorative strip, dashboard left | PAPPEL NATUR | 1 | 51458009023 | $85.10 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Decorative strip, dashboard left | ARIZONA SUN | 1 | 51458010287 | $85.10 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Decorative strip, dashboard left | ENGLISCHROT | 1 | 51458010303 | $85.10 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Decorative strip, dashboard left | OLIV | 1 | 51458010319 | $85.10 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Decorative strip, dashboard left | PAPPEL RUBIN | 1 | 51458022109 | $99.60 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Left-hand-drive car PAINTED PARTS |
=Yes |
|||||||||
| 02 | Instrum.panel decor strip center,painted | CODE - UNI/MET. | 1 | 51450139215 | $118.30 | ENDED | Shop at ECS Tuning | |||
| 02 | Decorative strip, I-panel, center primed | 1 | 51457904029 | $24.55 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Left-hand-drive car Individual wood |
=Yes |
|||||||||
| 02 | Decorative strip, dashboard center | BIRKE ANTHRAZIT | 1 | 51458008989 | $156.45 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Decorative strip, dashboard center | PAPPEL NATUR | 1 | 51458009024 | $156.45 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Decorative strip, dashboard center | AIZONA SUN | 1 | 51458010289 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Decorative strip, dashboard center | ENGLISCHROT | 1 | 51458010305 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Decorative strip, dashboard center | OLIV | 1 | 51458010321 | $149.54 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Decorative strip, dashboard center | PAPPEL RUBIN | 1 | 51458022110 | $121.64 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| For vehicles with Left-hand-drive car PAINTED PARTS |
=Yes |
|||||||||
| 04 | Instrum. panel decor strip right,painted | CODE - UNI/MET. | 1 | 51450139212 | $118.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Decorative strip, I-panel, right primed | 1 | 51457904026 | $29.85 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Left-hand-drive car Individual wood |
=Yes |
|||||||||
| 04 | Decorative strip, dashboard right | BIRKE ANTHRAZIT | 1 | 51458008988 | $156.45 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Decorative strip, dashboard right | PAPPEL NATUR | 1 | 51458009022 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Decorative strip, dashboard right | ARIZONA SUN | 1 | 51458010288 | $149.54 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Decorative strip, dashboard right | ENGLISCHROT | 1 | 51458010304 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 04 | Decorative strip, dashboard right | OLIV | 1 | 51458010320 | $149.54 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Decorative strip, dashboard right | PAPPEL RUBIN | 1 | 51458022108 | $136.15 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| Decorative strip, door front left Individual wood |
||||||||||
| 05 | Decorative strip, door front left | BIRKE ANTHRAZIT | 1 | 51418008991 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Decorative strip, door front left | PAPPEL NATUR | 1 | 51418009025 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Decorative strip, door front left | ARIZONA SUN | 1 | 51418010993 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Decorative strip, door front left | ENGLISCHROT | 1 | 51418011005 | $156.45 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Decorative strip, door front left | OLIV | 1 | 51418011017 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Decorative strip, door front left | PAPPEL RUBIN | 1 | 51418022111 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Decorative strip, door front left PAINTED PARTS |
||||||||||
| 05 | Decor strip, front left door, painted | CODE - UNI/MET. | 1 | 51410151607 | $96.53 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 05 | Decor strip, front left door, primed | 1 | 51418020157 | $68.91 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Decorative strip, door front right PAINTED PARTS |
||||||||||
| 06 | Decor strip, front right door, painted | CODE - UNI/MET. | 1 | 51410151614 | $96.53 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Decor strip, front right door, primed | 1 | 51418020158 | $68.91 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Decorative strip, door front right Individual wood |
||||||||||
| 06 | Decorative strip, door front right | BIRKE ANTHRAZIT | 1 | 51418008992 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Decorative strip, door front right | PAPPEL NATUR | 1 | 51418009026 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Decorative strip, door front right | ARIZONA SUN | 1 | 51418010994 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Decorative strip, door front right | ENGLISCHROT | 1 | 51418011006 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Decorative strip, door front right | OLIV | 1 | 51418011018 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 06 | Decorative strip, door front right | PAPPEL RUBIN | 1 | 51418022112 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Decorative strip, door rear left PAINTED PARTS |
||||||||||
| 07 | Decor strip, rear left door, painted | CODE - UNI/MET. | 1 | 51420151611 | $96.53 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 07 | Decor strip, rear left door, primed | 1 | 51428020159 | $68.91 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Decorative strip, door rear left Individual wood |
||||||||||
| 07 | Decorative strip, door rear left | BIRKE ANTHRAZIT | 1 | 51428008993 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 07 | Decorative strip, door rear left | PAPPEL NATUR | 1 | 51428009027 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 07 | Decorative strip, door rear left | ARIZONA SUN | 1 | 51428010995 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 07 | Decorative strip, door rear left | ENGLISCHROT | 1 | 51428011007 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 07 | Decorative strip, door rear left | OLIV | 1 | 51428011019 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 07 | Decorative strip, door rear left | PAPPEL RUBIN | 1 | 51428022113 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Decorative strip, door rear right PAINTED PARTS |
||||||||||
| 08 | Decor strip, rear right door, painted | CODE - UNI/MET. | 1 | 51420151616 | $96.53 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 08 | Decor strip, rear right door, primed | 1 | 51428020160 | $68.91 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Decorative strip, door rear right Individual wood |
||||||||||
| 08 | Decorative strip, door rear right | BIRKE ANTHRAZIT | 1 | 51428008994 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 08 | Decorative strip, door rear right | PAPPEL NATUR | 1 | 51428009028 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 08 | Decorative strip, door rear right | ARIZONA SUN | 1 | 51428010996 | $149.54 | ENDED, NoS | Shop at ECS Tuning | |||
| 08 | Decorative strip, door rear right | ENGLISCHROT | 1 | 51428011008 | $149.54 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 08 | Decorative strip, door rear right | OLIV | 1 | 51428011020 | $156.45 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 08 | Decorative strip, door rear right | PAPPEL RUBIN | 1 | 51428022114 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
