Indiv.door trim panel,leather/airbag frt for BMW 5 Series E39 525d (2003)

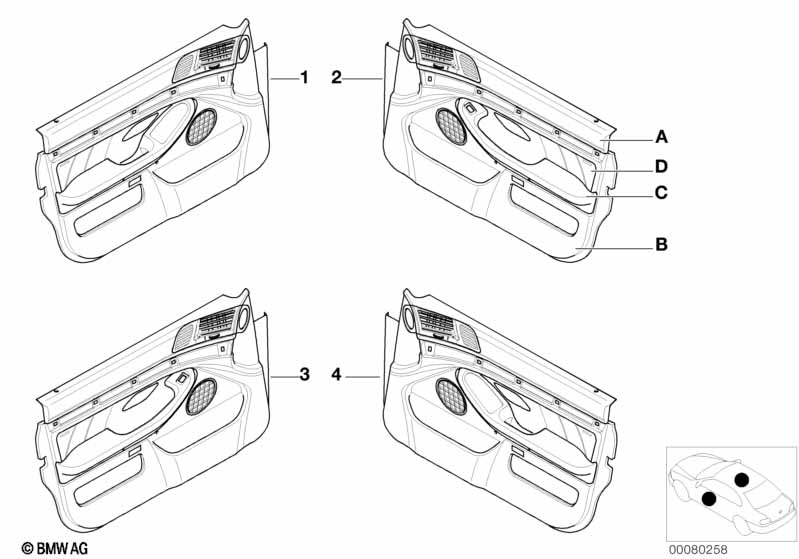

This Indiv.door trim panel,leather/airbag frt technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- ONLY APPLIES TO SIDE AIR BAG starting 3/96 = Option 260 starting 9/96 = Standard --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- --------------------------- A = Weatherstrip B = Door panel (carrier) C = Door handle (armrest) D = Insert (door mirror) --------------------------- |
|||||||||
| nappa leather = walk nappa A + B = Vinyl black C = see Supplement D = see Supplement |
||||||||||
| 03 | Door trim panel, front left | PETROL | 1 | 03/1996 | 51410026839 | ENDED, NoS | Shop at ECS Tuning | |||
| nappa leather = walk nappa A + B = Vinyl marineblau C = see Supplement D = see Supplement |
||||||||||
| 03 | Door trim panel, front left | CHAMPAGNER | 1 | 03/1996 | 51410007003 | ENDED, NoS | Shop at ECS Tuning | |||
| leather Montana A + B = Vinyl black C = see Supplement D = see Supplement |
||||||||||
| 03 | Door trim panel, front left / airbag | SW/GRAU | 1 | 03/1996 | 51418015095 | ENDED, NoS | Shop at ECS Tuning | |||
| nappa leather = walk nappa A + B = Vinyl black C = see Supplement D = see Supplement |
||||||||||
| 04 | Door trim panel, front right | LOTOSWEIß | 1 | 03/1996 | 51410006825 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Door trim panel, front right | PETROL | 1 | 03/1996 | 51410008538 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Door trim panel, front right / airbag | TITANIC D./ECRU | 1 | 03/1996 | 51410027476 | ENDED, NoS | Shop at ECS Tuning | |||
| nappa leather = walk nappa A + B = Vinyl marineblau C = see Supplement D = see Supplement |
||||||||||
| 04 | Door trim panel, front right | CHAMPAGNER | 1 | 03/1996 | 51410007002 | ENDED, NoS | Shop at ECS Tuning | |||
| leather Montana A + B = Vinyl black C = see Supplement D = see Supplement |
||||||||||
| 04 | Door trim panel, front right / airbag | SW/GRAU | 1 | 03/1996 | 51418015094 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
