Individual armrest, upper part, front for BMW 3 Series E46 318Ci (2006)

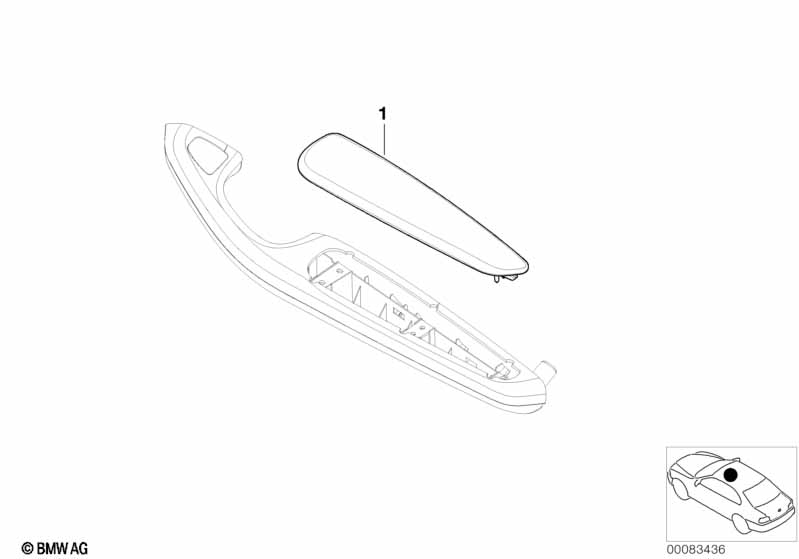

This Individual armrest, upper part, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather --------------------------- |
|||||||||
| 01 | Armrest upper part front left | 1 | 51418011553 | $237.71 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Armrest upper part front right | 1 | 51418011554 | $237.71 | ENDED, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
