Individual armrest, upper part, rear for BMW 3 Series E46 330Ci

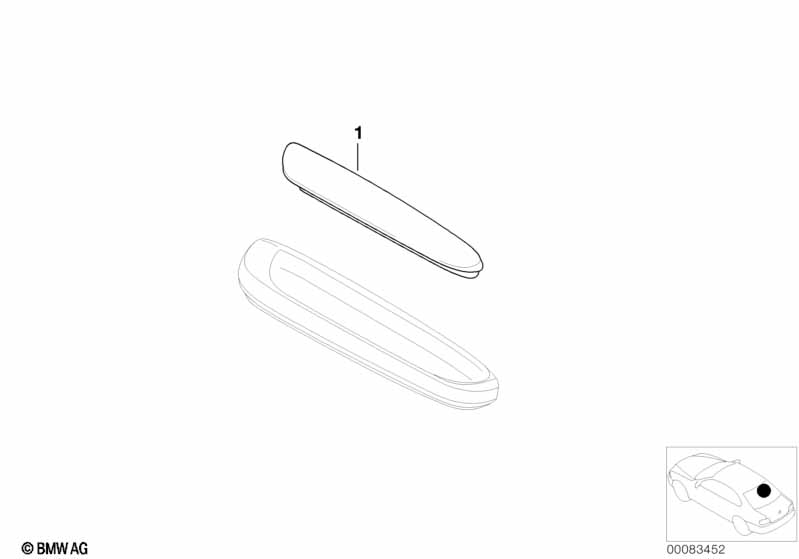

This Individual armrest, upper part, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part number leather --------------------------- |
|||||||||
| 01 | Armrest upper part rear left | 1 | 51438011575 | $123.88 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 01 | Armrest upper part rear right | 1 | 51438011576 | ENDED, +core, NoS | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330Ci Individual armrest, upper part, rear?
- This technical diagram illustrates the Individual armrest, upper part, rear within the Individual equipment group for the 3 Series E46 330Ci. It provides a detailed exploded view of the components, identifying key parts such as the Armrest upper part rear left (Part #51438011575).
- Which models use the hardware listed in this Individual armrest, upper part, rear?
- The hardware and components featured in the Individual armrest, upper part, rear are specific to the 3 Series E46 330Ci. These technical specifications ensure that parts like the Armrest upper part rear left (51438011575) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual armrest, upper part, rear assembly?
- Each item in the Individual armrest, upper part, rear corresponds to the numbered list below the illustration. For the 3 Series E46 330Ci, you can identify the Armrest upper part rear left by locating its position on the schematic, which then links to the official BMW part number 51438011575 for the Individual equipment section.
