Individual insert, frnt door for BMW 3 Series E36 320i (1999)

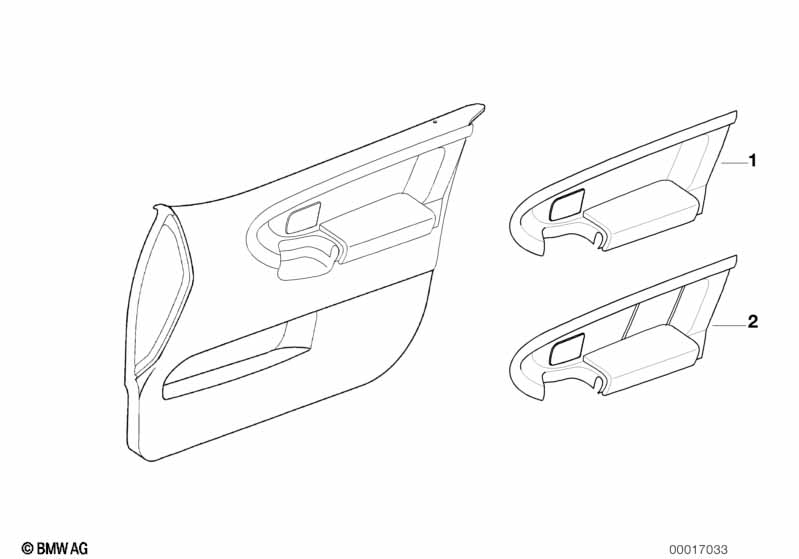

This Individual insert, frnt door technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Not suitable for side airbag | |||||||||
| leather Montana Insert, leather smooth |
||||||||||
| 01 | Left door trim panel insert | HELLGRAU | 1 | 51419071622 | $256.68 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Right door trim panel insert | HELLGRAU | 1 | 51419071623 | $256.68 | ENDED, NoS | Shop at ECS Tuning | |||
| Leather Nappa = upholstery leather, soft Insert, leather smooth |
||||||||||
| 01 | Left front door trim panel insert | SANDBEIGE | 1 | 51412430197 | $256.68 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Right front door trim panel insert | SANDBEIGE | 1 | 51412430198 | $256.68 | ENDED, NoS | Shop at ECS Tuning | |||
| nappa leather = walk nappa Insert, leather smooth |
||||||||||
| 01 | Left front door trim panel insert | MINT | 1 | 51412430231 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Right front door trim panel insert | MINT | 1 | 51412430232 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Right door trim panel insert | FLIEDER DUNKEL | 1 | 51419071464 | $256.68 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Left door trim panel insert | FLIEDER DUNKEL | 1 | 51419071465 | $256.68 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| nappa leather = walk nappa Insert, leather gathered |
||||||||||
| 02 | Left front door trim panel insert | N5SW SCHWARZ | 1 | 51412491631 | $281.83 | ENDED | Shop at ECS Tuning | |||
| 02 | Right front door trim panel insert | N5SW SCHWARZ | 1 | 51412491632 | $281.83 | ENDED | Shop at ECS Tuning | |||
| 02 | Left front door trim panel insert | N5MQ MAULBEERE | 1 | 51412491633 | $256.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Right front door trim panel insert | N5MQ MAULBEERE | 1 | 51412491634 | $281.83 | ENDED | Shop at ECS Tuning | |||
| 02 | Left front door trim panel insert | N5AY MODENA | 1 | 51412491635 | $256.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Right front door trim panel insert | N5AY MODENA | 1 | 51412491636 | $256.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Left front door trim panel insert | N5AX MAGMA | 1 | 51412491637 | $256.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Right front door trim panel insert | N5AX MAGMA | 1 | 51412491638 | $256.68 | ENDED | Shop at ECS Tuning | |||
| 02 | Left front door trim panel insert | L9CW CREMEWEIß | 1 | 51412493133 | $256.68 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Right front door trim panel insert | L9CW CREMEWEIß | 1 | 51412493134 | $256.68 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
