Individual door trim panel, cloth, front for BMW 3 Series E36 320i (1999)

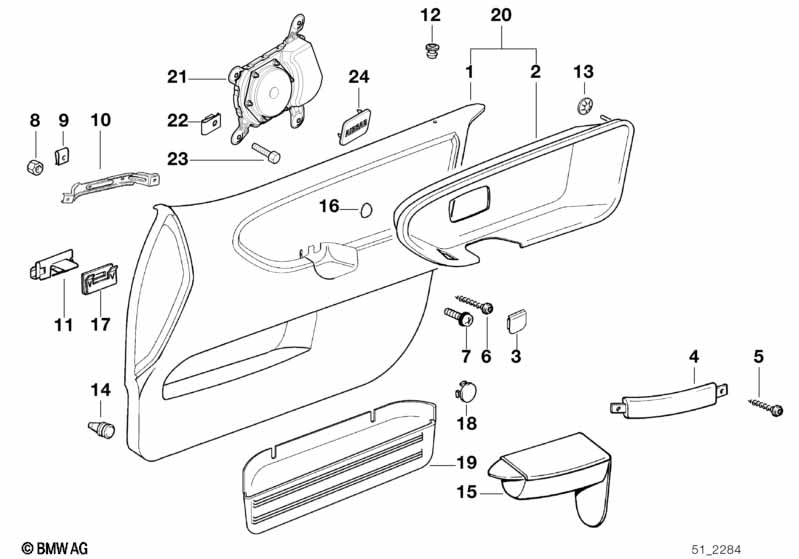

This Individual door trim panel, cloth, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Authorization in accordance with Cloth "Boa Boa" I 8427.J |
|||||||||
| Individual fabric, Boa-Boa unicolor blue violet 02-51 maron 02-80 ölblau 02-60 red 02-30 ölblau 02-60 for blauschwarz Insert, right |
||||||||||
| 02 | Right front door trim panel insert | BLAUVIOLETT UNI | 1 | 51412423974 | $61.10 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Right front door trim panel insert | MARON UNI | 1 | 51412424016 | $61.10 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Right front door trim panel insert | ROT UNI | 1 | 51412424060 | $61.10 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Right door trim panel insert | E7OL OELBLAU | 1 | 51412492402 | $61.10 | ENDED | Shop at ECS Tuning | |||
| Individual fabric, Boa-Boa unicolor blue violet 02-51 maron 02-80 ölblau 02-60 red 02-30 ölblau 02-60 for blauschwarz Insert, left |
||||||||||
| 02 | Left front door trim panel insert | BLAUVIOLETT UNI | 1 | 51412423973 | $395.21 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Left front door trim panel insert | MARON UNI | 1 | 51412424015 | $61.10 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Left front door trim panel insert | ROT UNI | 1 | 51412424059 | $61.10 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Left door trim panel insert | E7OL OELBLAU | 1 | 51412492401 | $61.10 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
