Individual armrest, front and rear for BMW 3 Series E46 318Ci (2003)

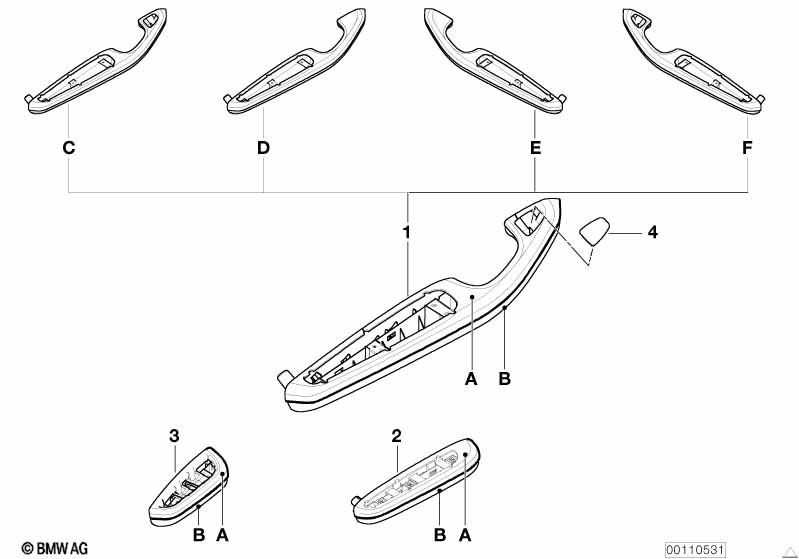

This Individual armrest, front and rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to individual vehicles with SA 940 --------------------------- Important! Before ordering these parts check whether standard parts can be used --------------------------- Series parts and softpads see EPC 51/50/51-3730 armrest front 51/50/51-3730 armrest rear Coupe 51/50/51-4088 armrest rear Convertible (main group/function group/illustration no. --------------------------- Indiv. softpads see EPC 91/45/91_0200 Armrest upper part front 91/45/91_0202 Armrest upper part rear --------------------------- Specify when ordering: - part no., - dealer no., - chassis no., - ( A ) Decorative top (material/colour), - ( B ) colour of bottom part - left or right --------------------------- Information only for wood armrest, front C = LHD, left D = RHD, left E = LHD, right F = RHD, right --------------------------- Available decor upper parts, individual wood - birch anthrazit - poplar natur - poplar rubin - maple arizona sun - maple oliv - maple englischrot (chestnut) --------------------------- Colors, possible "high-gloss" parts - black metallic - gray metallic - light beige metallic --------------------------- Colors in possible lower sections - black - gray - light beige --------------------------- |
|||||||||
| Decorative top, special paint | ||||||||||
| 01 | Front armrest, special paint | CODE - UNI/MET. | 2 | 51418018420 | $276.77 | ENDED, NoS | Shop at ECS Tuning | |||
| Standard material, however, colour combination between decorative top and lower part non-standard |
||||||||||
| 01 | Armrest, front | MATTCHROM | 2 | 51418013002 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Armrest, front | HOCHGLANZ | 2 | 51418013003 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Front armrest, real wood | AHORN HOCHGLANZ | 2 | 51418013004 | $345.96 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Front armrest, real wood | MYRTE HOCHGLANZ | 2 | 51418013005 | $345.96 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Armrest, aluminium, front | SILVER CUBE | 2 | 51418024875 | $210.92 | ENDED, NoS | Shop at ECS Tuning | |||
| Decorative top, leather | ||||||||||
| 01 | Front left armrest, leather | 1 | 51418018233 | $276.77 | ENDED, NoS | Shop at ECS Tuning | ||||
| 01 | Front right armrest, leather | 1 | 51418018234 | $276.77 | ENDED, NoS | Shop at ECS Tuning | ||||
| Decorative top, individual wood | ||||||||||
| 01 | Front armrest, real wood | INDIVIDUALHOLZ | 2 | 51418010261 | $555.00 | ENDED, NoS | Shop at ECS Tuning | |||
| Decorative top, special paint | ||||||||||
| 03 | Rear armrest, special paint | CODE - UNI/MET. | 2 | 51438018422 | $148.43 | ENDED, NoS | Shop at ECS Tuning | |||
| Decorative top, leather | ||||||||||
| 03 | Rear left armrest, leather | 1 | 51438018237 | $148.43 | ENDED, NoS | Shop at ECS Tuning | ||||
| 03 | Rear right armrest, leather | 1 | 51438018238 | $148.43 | ENDED, NoS | Shop at ECS Tuning | ||||
| Decorative top, individual wood | ||||||||||
| 03 | Rear armrest, real wood | INDIVIDUALHOLZ | 2 | 51438014955 | $321.41 | ENDED, NoS | Shop at ECS Tuning | |||
| Armrest, rear However standard material not in standard series color combination of decor part in lower section |
||||||||||
| 03 | Armrest, rear | MATTCHROM | 2 | 51438015768 | $91.51 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Armrest, rear | HOCHGLANZ | 2 | 51438015769 | $91.51 | ENDED, NoS | Shop at ECS Tuning | |||
| 03 | Rear armrest, real wood | AHORN HOCHGLANZ | 2 | 51438015770 | $276.77 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Rear armrest, real wood | MYRTE HOCHGLANZ | 2 | 51438015771 | $276.77 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 03 | Armrest, aluminium, rear | SILVER CUBE | 2 | 51438024877 | $150.66 | ENDED, NoS | Shop at ECS Tuning | |||
| only applies to PAINTED PARTS |
||||||||||
| 04 | Cover, primed | 1 | 51418020232 | $9.60 | ENDED, NoS | Shop at ECS Tuning | ||||
| 04 | Painted covering | CODE - UNI/MET. | 1 | 51410151639 | $65.84 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
