Indiv.lateral trim panel rear for BMW 3 Series E46 320Ci (2006)

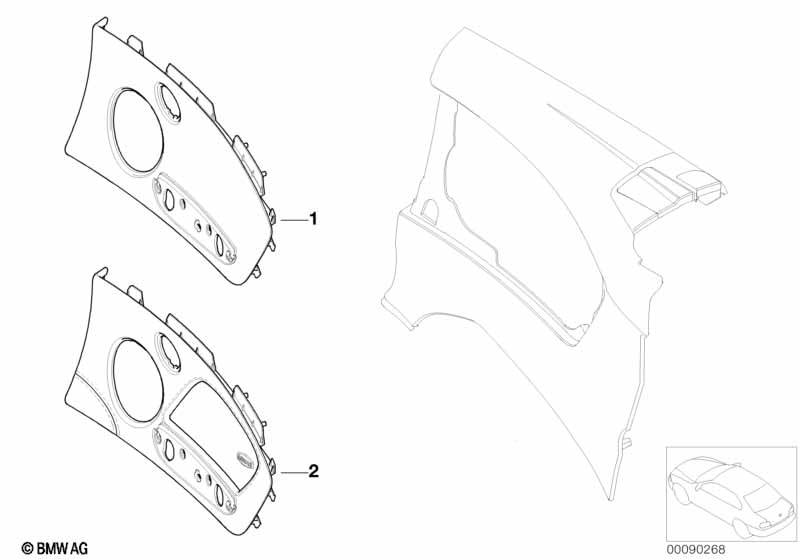

This Indiv.lateral trim panel rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Specify when ordering: - part no., - dealer no., - chassis no., - color and material --------------------------- |
|||||||||
| 01 | Left trim panel insert | WALKNAPPA | 1 | 51438020233 | $547.96 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Right trim panel insert | WALKNAPPA | 1 | 51438020234 | $547.96 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Left trim panel insert | PRÄGELEDER | 1 | 51438020237 | $547.96 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Right trim panel insert | PRÄGELEDER | 1 | 51438020238 | $547.96 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 02 | Side trim panel insert, left/aribag | WALKNAPPA | 1 | 51438020235 | $672.39 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Side trim panel insert, right/aribag | WALKNAPPA | 1 | 51438020236 | $672.39 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Side trim panel insert, left/aribag | PRÄGELEDER | 1 | 51438020239 | $672.39 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Side trim panel insert, right/aribag | PRÄGELEDER | 1 | 51438020240 | $672.39 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
