Individual floor covering for BMW 3 Series E46 320Ci (2003)

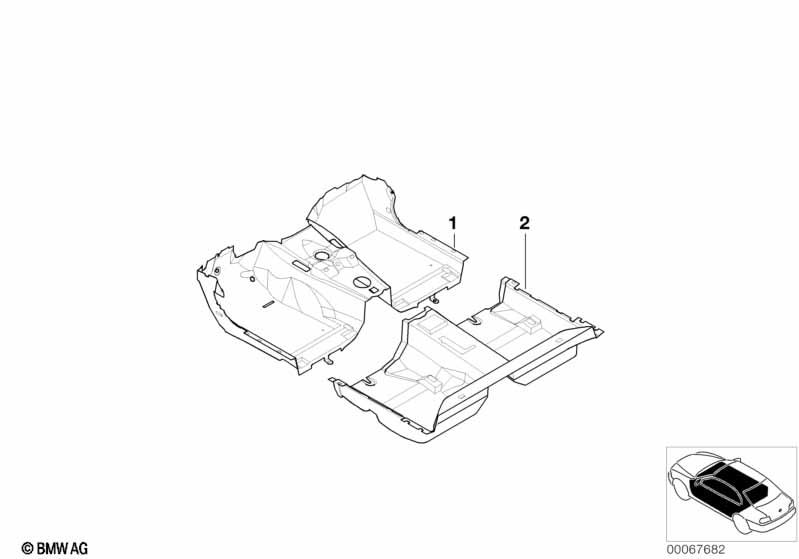

This Individual floor covering technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Individual vehicles with upholstery code Z1XX --------------------------- --------------------------- --------------------------- |
|||||||||
| For vehicles with Left-hand-drive car |
=Yes |
|||||||||
| 01 | Floor trim cover, front | CREMEWEIß | 1 | 51478014331 | $449.75 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | ECRU | 1 | 51478014339 | $406.22 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | TINTENBLAU | 1 | 51478014347 | $449.75 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Floor trim cover, front | OLIV DUNKEL | 1 | 51478018500 | $449.75 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor covering rear | CREMEWEIß | 1 | 51478014333 | $351.54 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor covering rear | ECRU | 1 | 51478014341 | $301.32 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor covering rear | TINTENBLAU | 1 | 51478014349 | $351.54 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor covering rear | OLIV DUNKEL | 1 | 51478018501 | $351.54 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
