Individual trim panel, trunk floor for BMW 5 Series E39 528i (2000)

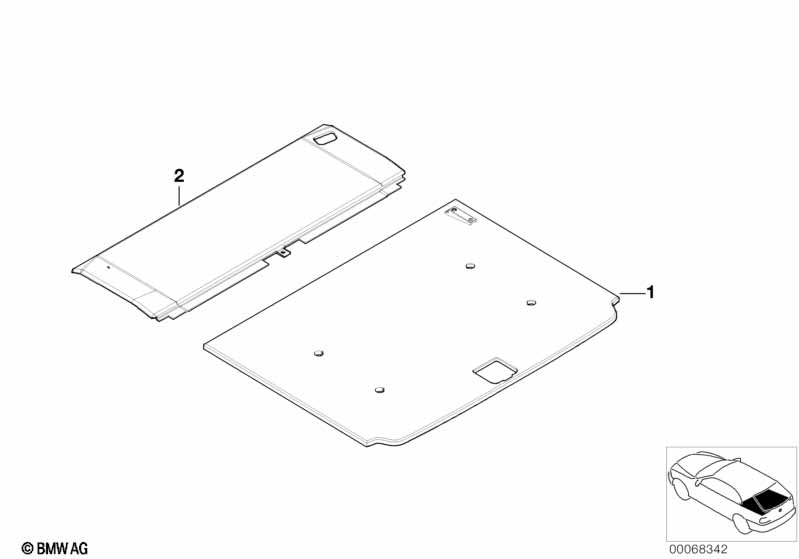

This Individual trim panel, trunk floor technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Individual vehicles with upholstery code Z1XX or Individual vehicles with SA 940 --------------------------- not suitable for Opt. 412 = Cargo area floor, extractable |
|||||||||
| 01 | Floor carpet, front | ECRU | 1 | 51472432240 | $188.54 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Floor carpet, front | CREMEWEIß | 1 | 51472432325 | $159.59 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Floor carpet, front | TINTENBLAU | 1 | 51472432336 | $159.59 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Floor carpet, front | OLIV DUNKEL | 1 | 51472432351 | $159.59 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor carpet, rear | ECRU | 1 | 51472432255 | $415.15 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor carpet, rear | CREMEWEIß | 1 | 51472432326 | $415.15 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor carpet, rear | TINTENBLAU | 1 | 51472432330 | $415.15 | ENDED, NoS | Shop at ECS Tuning | |||
| 02 | Floor carpet, rear | OLIV DUNKEL | 1 | 51472432352 | $415.15 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
