Individual headrest, front for BMW 5 Series E39 523i (2000)

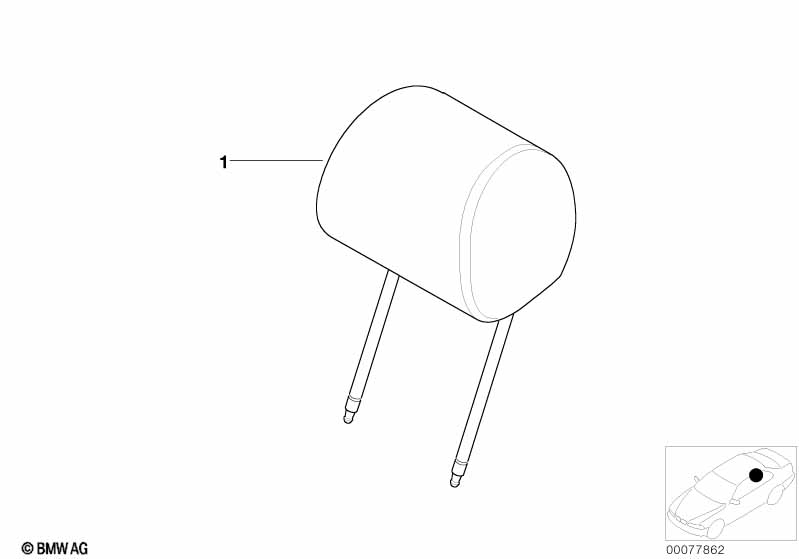

This Individual headrest, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- headrest for basic seat --------------------------- --------------------------- |
|||||||||
| nappa leather = walk nappa | ||||||||||
| 01 | Headrest leather | SEPIA DUNKEL | 2 | 52108014619 | $229.90 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Napa leather headrest | ARIZONA SUN | 2 | 52108014678 | $229.90 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Headrest leather | ERCU | 2 | 52108014737 | $229.90 | ENDED, NoS | Shop at ECS Tuning | |||
| 01 | Napa leather headrest | KASTANIE HELL | 2 | 52108014795 | $229.90 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
