Indiv. headrest, leather, with piping for BMW 3 Series E46 330i (2001)

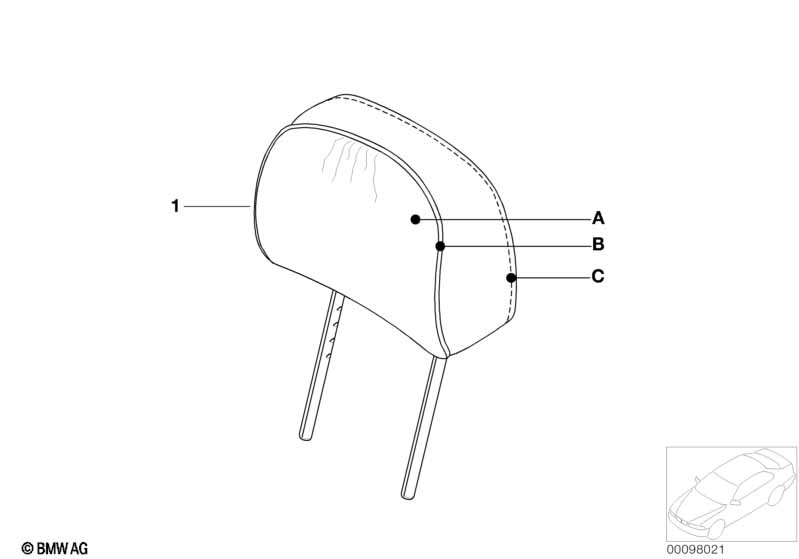

This Indiv. headrest, leather, with piping technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather, (headrest) - (B) Part no. leather, (piping) - (C) Colour of thread = matching --------------------------- Version: only in leather Walknappa or Pearlnappa --------------------------- |
|||||||||
| For vehicles with basic seat (standard seat) |
=Yes |
|||||||||
| 01 | Head rest leather with cord | 2 | 02/2000 | 52108021883 | $270.07 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330i Indiv. headrest, leather, with piping?
- This technical diagram illustrates the Indiv. headrest, leather, with piping within the Individual equipment group for the 3 Series E46 330i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Head rest leather with cord (Part #52108021883).
- Which models use the hardware listed in this Indiv. headrest, leather, with piping?
- The hardware and components featured in the Indiv. headrest, leather, with piping are specific to the 3 Series E46 330i produced during 2001. These technical specifications ensure that parts like the Head rest leather with cord (52108021883) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Indiv. headrest, leather, with piping assembly?
- Each item in the Indiv. headrest, leather, with piping corresponds to the numbered list below the illustration. For the 3 Series E46 330i, you can identify the Head rest leather with cord by locating its position on the schematic, which then links to the official BMW part number 52108021883 for the Individual equipment section.
