Indiv.wood, rear panel, table and strips for BMW 7 Series E38 730i (1996)

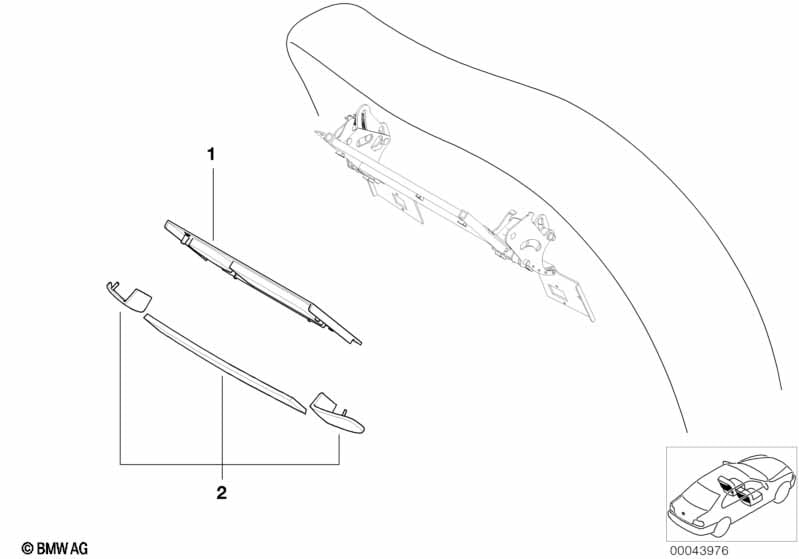

This Indiv.wood, rear panel, table and strips technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | UPPER REAR MULTI-PURPOSE PANEL | |||||||||
| 01 | Table | BEIGE 0110 | 2 | 04/1997 | 52102281828 | $531.22 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Table | GRAU 0120 | 2 | 04/1997 | 52102281829 | $531.22 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Table | GRAPHIT 0130 | 2 | 04/1997 | 52102281830 | $531.22 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Table | CLASSIC NUßBAUM | 2 | 04/1997 | 52102281833 | $531.22 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Table | PAPPEL NATUR | 2 | 52102281831 | $531.22 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Table | EIBE CLUB | 2 | 52102281832 | $531.22 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Table | PLATANE | 2 | 52102281834 | $531.22 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Table | BIRKE ANTHRAZIT | 2 | 52102423072 | $580.32 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Table | BIRKE BLAU | 2 | 52102428413 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 01 | Table | BRUYERE CLUB | 2 | 52108011106 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Standard wood | ||||||||||
| 01 | Folding table | NUSSBAUM | 2 | 52108215111 | $408.46 | ENDED | Shop at ECS Tuning | |||
| 02 | Set of wooden covers | BEIGE 0110 | 2 | 04/1997 | 52102281298 | $374.98 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Set of wooden covers | GRAU 0120 | 2 | 04/1997 | 52102281299 | $374.98 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Set of wooden covers | GRAPHIT 0130 | 2 | 04/1997 | 52102281300 | $374.98 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Set of wooden covers | CLASSIC NUßBAUM | 2 | 04/1997 | 52102281303 | $374.98 | ENDED, +core, NoS | Shop at ECS Tuning | ||
| 02 | Set of wooden covers | PAPPEL NATUR | 2 | 52102281301 | $374.98 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Set of wooden covers | EIBE CLUB | 2 | 52102281302 | $374.98 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Set of wooden covers | PLATANE | 2 | 52102281304 | $374.98 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Set of wooden covers | NUßB./INTARSIEN | 2 | 52102422179 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Set of wooden covers | BIRKE ANTHRAZIT | 2 | 52102423067 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Set of wooden covers | BIRKE BLAU | 2 | 52102428408 | $265.61 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 02 | Set of wooden covers | BRUYERE CLUB | 2 | 52108011104 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Standard wood | ||||||||||
| 02 | Set of wooden covers | NUSSBAUM | 2 | 52108199660 | $283.46 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
