Individual cover, sports seat, leather for BMW 3 Series E46 330d (2004)

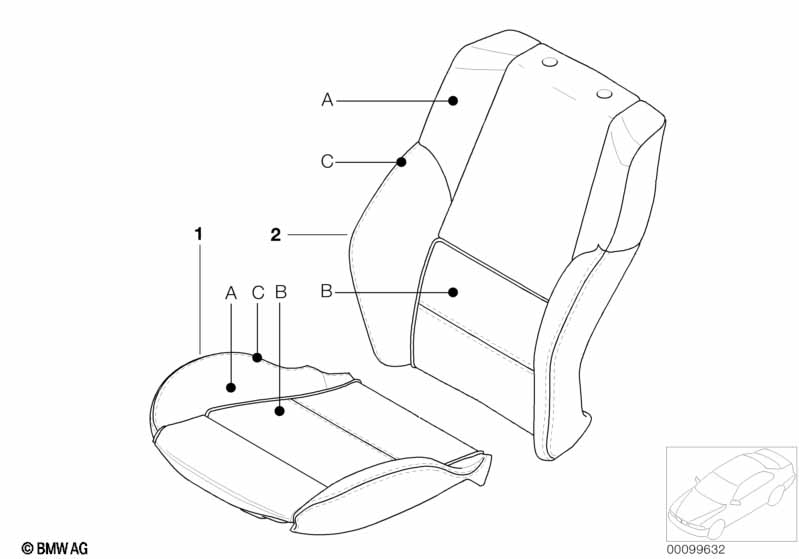

This Individual cover, sports seat, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Part no. leather with bicolor or embossed leather - (C) Colour of thread = matching --------------------------- Version: only in leather Walknappa or embossed leather Seam pattern = Q9 --------------------------- --------------------------- Version with seat heating (also suitable for vehicles without seat heating) |
|||||||||
| Version: -Unicolor or with embossed leather |
||||||||||
| 01 | Cover, sports seat, leather | Q9 UNI | 2 | 52108011523 | $867.69 | ENDED, NoS | Shop at ECS Tuning | |||
| Version: - Bicolor |
||||||||||
| 01 | Seatcover, Sport seat, leather bicolor | Q9 BICOLOR | 2 | 52108016317 | $867.69 | ENDED, NoS | Shop at ECS Tuning | |||
| Version: -Unicolor or with embossed leather |
||||||||||
| 02 | Cover, backrest, sports seat, leather | Q9 UNI | 2 | 52108011524 | $820.26 | ENDED, NoS | Shop at ECS Tuning | |||
| Version: - Bicolor |
||||||||||
| 02 | Cover,backrest,sports seat leath.bicolor | Q9 BICOLOR | 2 | 52108016318 | $820.26 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
