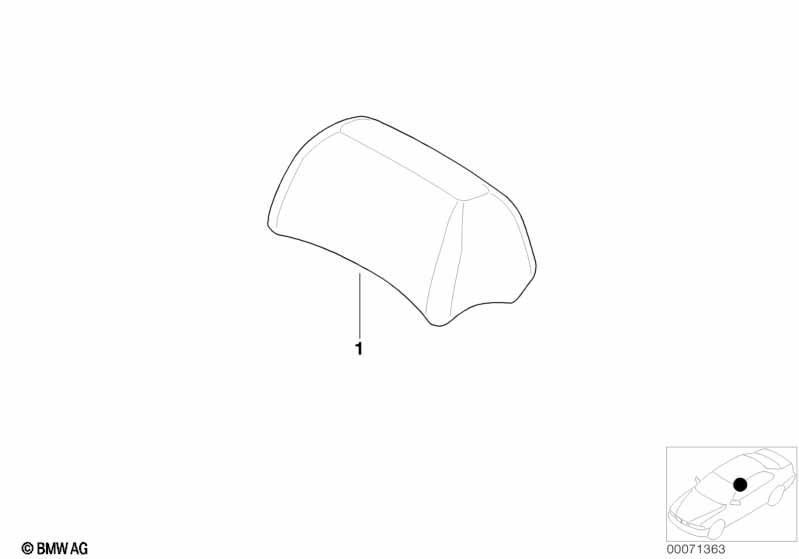

Individual headrest, leather, rear for BMW 3 Series E46 328i (2000)
This Individual headrest, leather, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Specify when ordering: part no., dealer no., chassis no., leather color --------------------------- |
|||||||||
| 01 | Headrest leather | Q9 | 2 | 52208011526 | ENDED, NoS | Shop at ECS Tuning | ||||
| Suitable for vehicles with Piping, front side |
||||||||||
| 01 | Headrest leather | N6 | 2 | 02/2000 | 52208015181 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
