Ind.cover f through-load.syst leather N6 for BMW 3 Series E46 316i (2004)

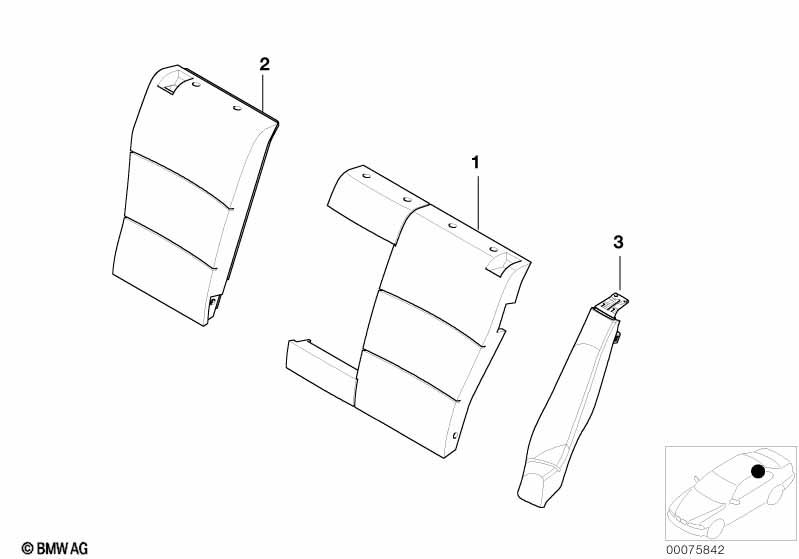

This Ind.cover f through-load.syst leather N6 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- E46/2 = Standard E46/4 = Opt. 465 Loadthrough system --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Specify when ordering: part no., dealer no., chassis no., ( A ) leather colour, ( B ) leather colour, if bicolor, ( C ) thread colour --------------------------- --------------------------- |
|||||||||
| Cover, backrest, rear left leather | ||||||||||
| 01 | Cover, backrest, rear left leather | N6 UNI | 1 | 02/2000 | 52208015189 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| Cover, backrest, rear right leather | ||||||||||
| 02 | Cover, backrest, rear right leather | N6 UNI | 1 | 02/2000 | 52208015190 | ENDED, NoS | Shop at ECS Tuning | |||
| Side finisher, leather, left | ||||||||||
| 03 | Side finisher, leather, left | N6 | 1 | 02/2000 | 52208015191 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| Side finisher, leather, right | ||||||||||
| 03 | Side finisher, leather, right | N6 | 1 | 02/2000 | 52208015192 | ENDED, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
