Ind.cover f through-load.syst leather Q9 for BMW 3 Series E46 323i (2000)

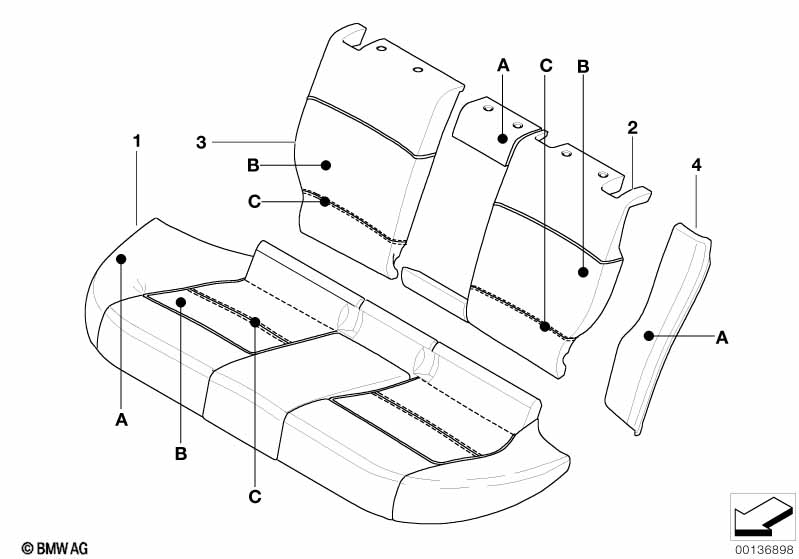

This Ind.cover f through-load.syst leather Q9 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Part no. leather with bicolor or embossed leather - (C) Colour of thread = matching --------------------------- Version: only in leather Walknappa or embossed leather Seam pattern = Q9 --------------------------- |
|||||||||
| Version: -Unicolor or with embossed leather |
||||||||||
| 01 | Leather seat cover, rear | UNI | 1 | 09/2001 | 52208011528 | ENDED, NoS | Shop at ECS Tuning | |||
| Version: - Bicolor |
||||||||||
| 01 | Leather seat cover, rear | Q9 BICOLOR | 1 | 09/2001 | 52208016319 | ENDED, NoS | Shop at ECS Tuning | |||
| For vehicles with Isofix-System Version: -Unicolor or with embossed leather |
S470A=Yes |
|||||||||
| 01 | Leather seat cover, rear | UNI | 1 | 52208011532 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System Version: - Bicolor |
S470A=Yes |
|||||||||
| 01 | Leather seat cover, rear | BICOLOR | 1 | 52208016323 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| Version: -Unicolor or with embossed leather |
||||||||||
| 02 | Cover, backrest, rear left leather | UNI | 1 | 52208011533 | $825.84 | ENDED, NoS | Shop at ECS Tuning | |||
| Version: - Bicolor |
||||||||||
| 02 | Cover, backrest, rear left leather | BICOLOR | 1 | 52208016321 | $825.84 | ENDED, NoS | Shop at ECS Tuning | |||
| Version: -Unicolor or with embossed leather |
||||||||||
| 03 | Cover, backrest, rear right leather | UNI | 1 | 52208011534 | ENDED, NoS | Shop at ECS Tuning | ||||
| Version: - Bicolor |
||||||||||
| 03 | Cover, backrest, rear right leather | BICOLOR | 1 | 52208016322 | $524.52 | ENDED, NoS | Shop at ECS Tuning | |||
| 04 | Side finisher, leather, left | 1 | 52208011535 | $373.86 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 04 | Side finisher, leather, right | 1 | 52208011536 | $373.86 | ENDED, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
