Individual wood cover for armrest for BMW 7 Series E38 730d (2001)

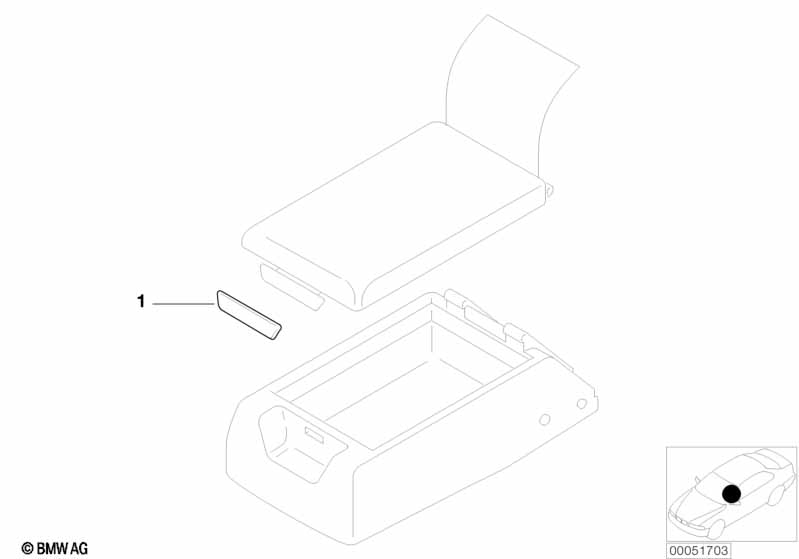

This Individual wood cover for armrest technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to Individual vehicles with SA 940 --------------------------- |
|||||||||
| 01 | Cover | GRAU 0120 | 1 | 52202279765 | $89.84 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover | PAPEL NATUR | 1 | 52202279767 | $89.84 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover | EIBE CLUB | 1 | 52202279768 | $89.84 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover | PLATANE | 1 | 52202279770 | $89.84 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover | ARIZONA SUN | 1 | 10/1998 | 52208010041 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Cover | ENGLISCHROT | 1 | 10/1998 | 52208010105 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Cover | OLIV | 1 | 05/1999 | 52208010169 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Cover | BRUYERE CLUB | 1 | 05/1999 | 52208011123 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
