Individual armrest, rear, leather for BMW 3 Series E46 320i (2000)

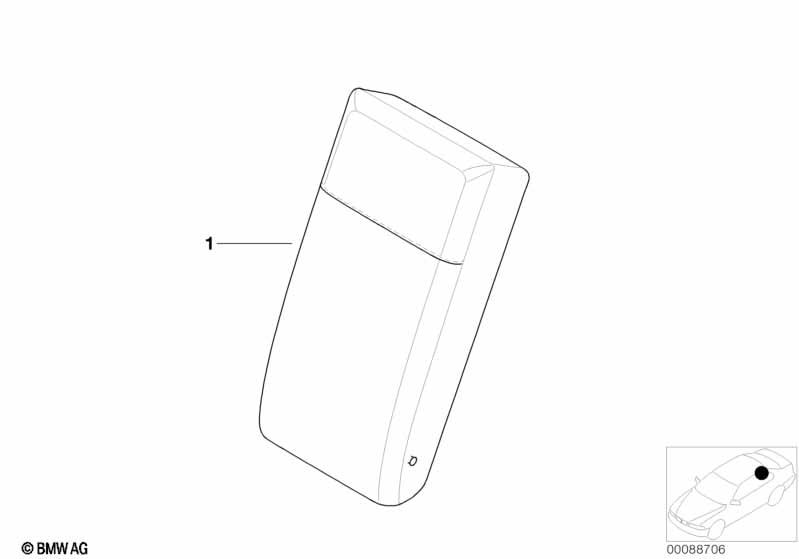

This Individual armrest, rear, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Specify when ordering: part no., dealer no., chassis no., leather color |
|||||||||
| 01 | Armrest leather | Q9 | 1 | 52208011530 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Piping, front side |
||||||||||
| 01 | Armrest leather | N6 | 1 | 02/2000 | 52208015185 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
- +core = plus core charge (possibility of a return of the old part)
