Individual multifunct. armrest, leather for BMW 3 Series E46 330xi (2004)

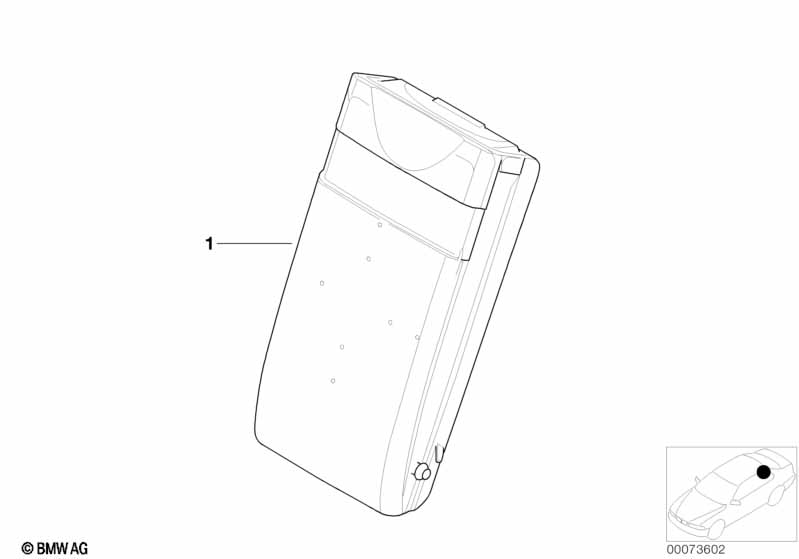

This Individual multifunct. armrest, leather technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- only applies to SA 493 = Storage area package --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Specify when ordering: part no., dealer no., chassis no., leather color --------------------------- |
|||||||||
| 01 | Multi-functional armrest. leather | Q9 | 1 | 52208011604 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
| 01 | Multi-functional armrest. leather | N6 | 1 | 52208015197 | ENDED, +core, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330xi Individual multifunct. armrest, leather?
- This technical diagram illustrates the Individual multifunct. armrest, leather within the Individual equipment group for the 3 Series E46 330xi produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Multi-functional armrest. leather (Part #52208011604).
- Which models use the hardware listed in this Individual multifunct. armrest, leather?
- The hardware and components featured in the Individual multifunct. armrest, leather are specific to the 3 Series E46 330xi produced during 2004. These technical specifications ensure that parts like the Multi-functional armrest. leather (52208011604) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual multifunct. armrest, leather assembly?
- Each item in the Individual multifunct. armrest, leather corresponds to the numbered list below the illustration. For the 3 Series E46 330xi, you can identify the Multi-functional armrest. leather by locating its position on the schematic, which then links to the official BMW part number 52208011604 for the Individual equipment section.
