Individual Multi. armrest, ld-thr., lthr for BMW 3 Series E46 330xi (2004)

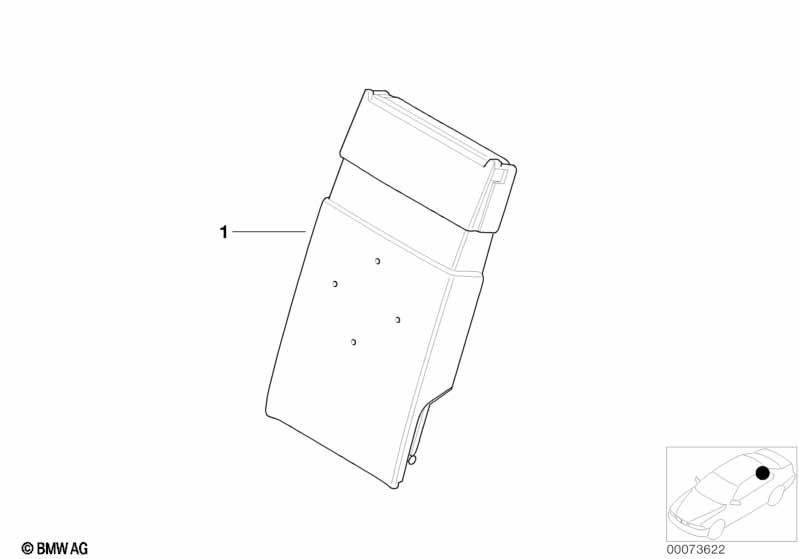

This Individual Multi. armrest, ld-thr., lthr technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX --------------------------- ONLY APPLIES TO THROUGH-LOADING FACILITY --------------------------- E46/2 = Opt. 493 E46/4 = Opt. 493 and Opt. 465 --------------------------- SA 493 = Storage area package SA 465 = Through-Loading System --------------------------- Important! Series parts or retrofits not possible via this order no. --------------------------- Specify when ordering: part no., dealer no., chassis no., leather color --------------------------- |
|||||||||
| 01 | Multi-functional armrest. leather | Q9 | 1 | 52208011605 | $611.01 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Multi-functional armrest. leather | N6 | 1 | 52208015198 | $611.01 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
