Indiv. headrest, front, Alcantara for BMW 3 Series E46 318Ci (2003)

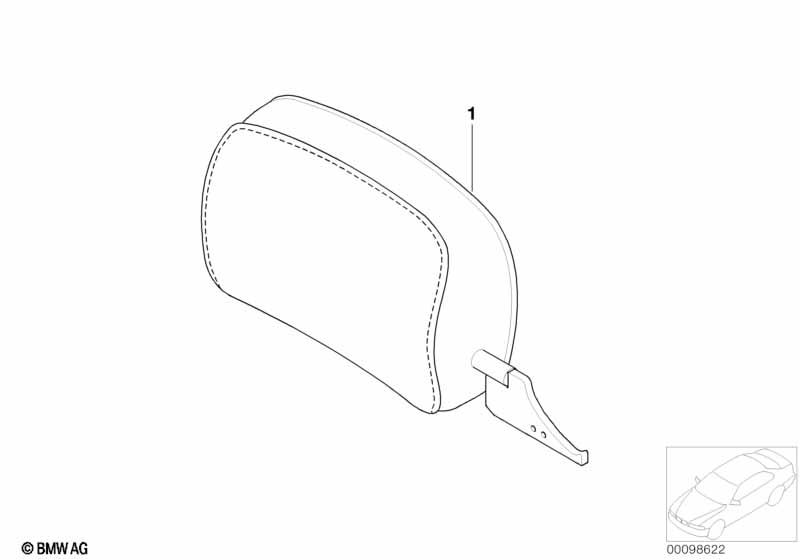

This Indiv. headrest, front, Alcantara technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. Alcantara - (B) Colour of thread = matching --------------------------- Version: only in Alcantara uni --------------------------- For vehicles with Standard seat or Sports seat |
=Yes =Yes |
||||||||
| 01 | Headrest Alcantara left | UNI | 1 | 52108015567 | $206.46 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 01 | Headrest Alcantara right | UNI | 1 | 52108015568 | $206.46 | ENDED, +core, NoS | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
