Indiv. leather cover, sports seat N6 for BMW 3 Series E46 316ti (2004)

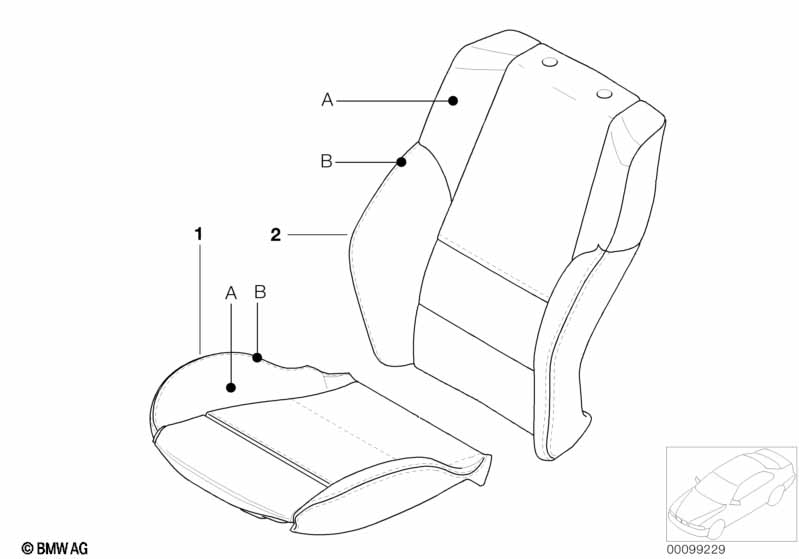

This Indiv. leather cover, sports seat N6 technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Only applies to individual vehicles with upholstery code Z1XX ---------------------------------- Important! Series parts are not possible via this order no. . Since individual vehicles are also equipped with series parts, it is to be assured that the spare part needed is not a series part. ---------------------------------------- Specify when ordering: . Spare part for individual vehicle: - part no. - dealer no. - chassis no. . Retrofit of an individual part: - part. no. - dealer no. -chassis no. - (A) Part no. leather - (B) Colour of thread = matching --------------------------- Version: only available in fulled Napa leather or pearl Napa or Montana Seam pattern = N6 Model with seat heating --------------------------- For vehicles with Sports seat |
S481A=Yes |
||||||||
| 01 | Cover, sports seat, leather | N6 | 2 | 52108021967 | ENDED, NoS | Shop at ECS Tuning | ||||
| 02 | Cover, backrest, sports seat, leather | N6 | 2 | 52108021968 | ENDED, NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
